L322 Range Rover Service Procedures
EXTERIOR FITTINGS
76-2-14 REPAIRS

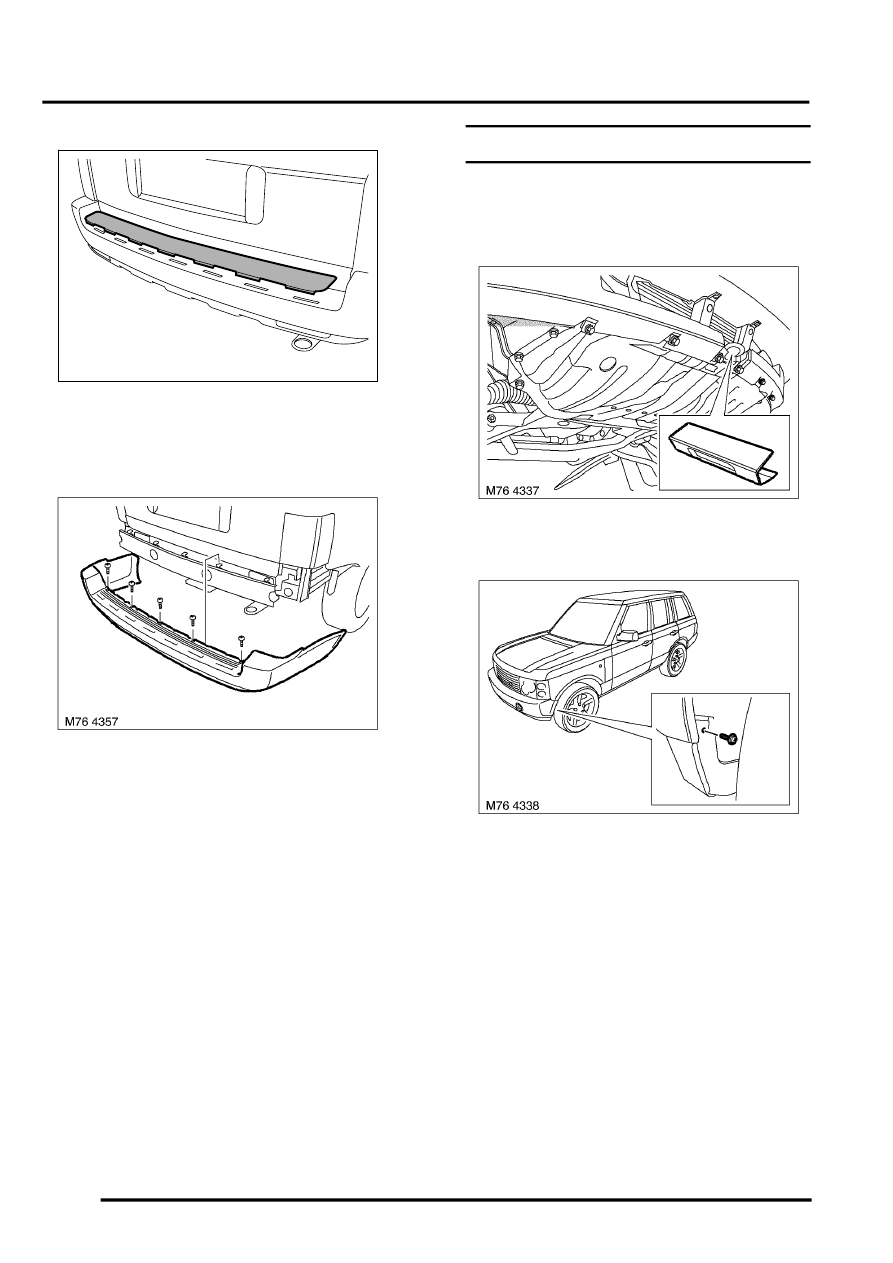

3. Carefully release 7 clips securing rear bumper
finisher, open lower tailgate and remove
finisher.
4. Remove 5 screws securing top edge of bumper
to armature.
5. Depress 6 clips securing bumper to rear wings
and with assistance remove bumper from
vehicle.
CAUTION: Always protect paintwork when
removing or refitting any body trims or
bumpers.
Refit
1. With assistance position bumper to body.
2. Fit and finger tighten screws securing top edge
of bumper to armature.
3. Align bumper sides to rear wings and secure in
clips.
4. Fit and tighten bumper apron screws, tighten
screws securing top edge of bumper to
armature.
5. Position wheel arch liners, secure with screws
and scrivets .
6. Fit and secure finisher to bumper.
Extension - spoiler - front bumper
$% 76.22.78
Remove
1. Release clips and remove towing eye finisher.
2. Remove screw securing bumper extension to
wheel arch liner.
M76 4356
