L322 Range Rover Service Procedures
EXTERIOR FITTINGS
76-2-8
REPAIRS

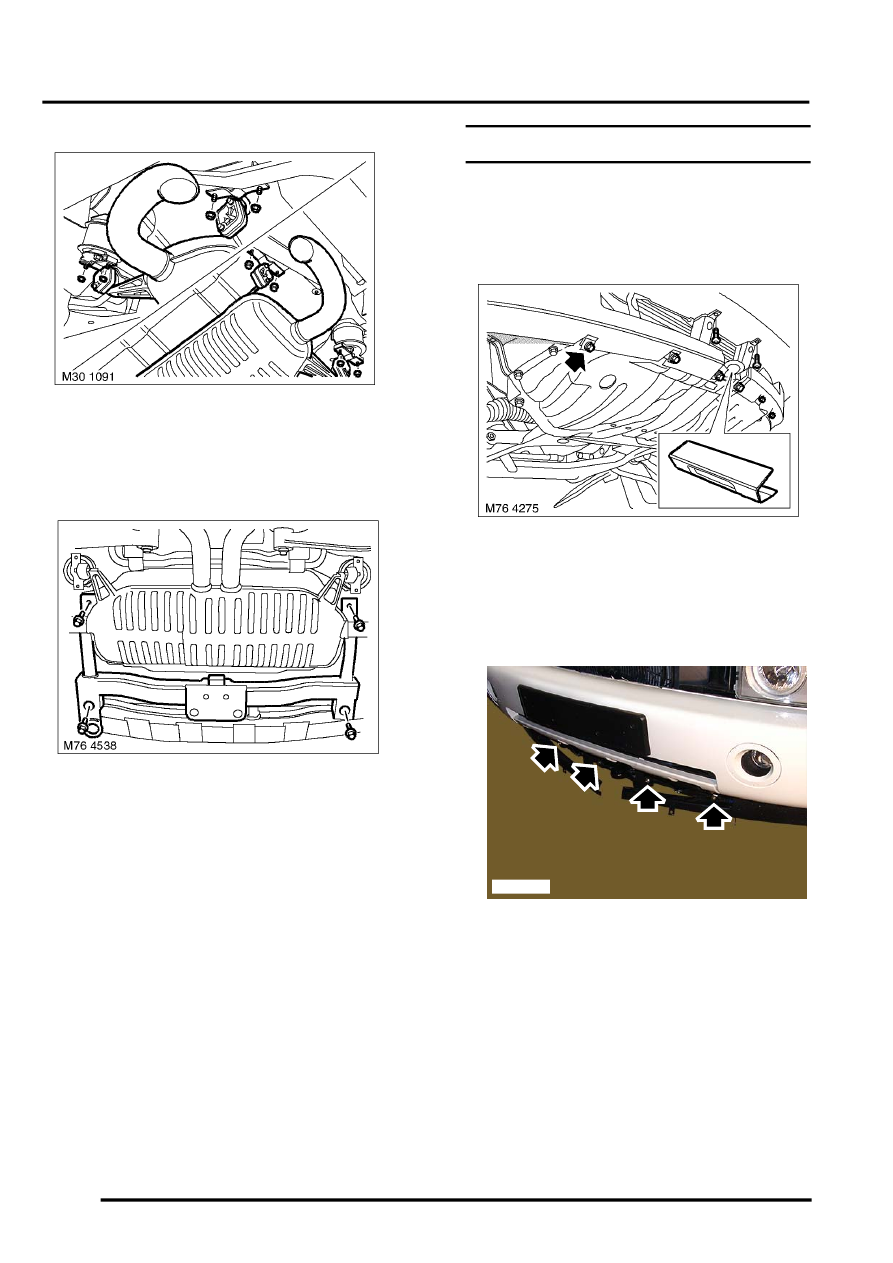

5. Remove 4 nuts securing exhaust rubber
mountings to the rear subframe.
6. Support exhaust and remove 4 nuts securing
exhaust rubber mountings to the tow bar.
7. Lower exhaust sufficiently to allow access to
tow bar retaining bolts.
8. Remove 4 bolts securing tow bar to body and
with assistance remove the tow bar.
Refit
1. With assistance position tow bar to body, fit
bolts and tighten to 165 Nm ( 122 lbf.ft).
2. Position socket to tow bar, fit bolts and tighten
to 25 Nm (18 lbf.ft).
3. Position exhaust to mountings, fit nuts and
tighten to 25 Nm ( 18 lbf,ft).
4. Fit tow ball to tow bar. Fit nut and bolt and
tighten to 300 Nm (224 lbf.ft).
5. Fit tow ball locking pin.
6. Fit bumper armature.
Undertray - front
$% 76.11.81
Remove
1. Raise vehicle on lift.
2. Release clips and remove towing eye finisher.
3. Remove 6 screws securing air dam to
undertray.
4. Remove 2 screws securing air dam support
brackets to bumper.
5. Carefully ease air dam aside for access and
remove 4 screws.
M76 4276
