L322 Range Rover Service Procedures
EXTERIOR FITTINGS
REPAIRS 76-2-13
10. Ensure bumper locating pegs are correctly
aligned.
11. Fit and tighten screws securing bumper to
bumper armature and undertray.
12. Fit and tighten screws securing wheel arch
liners to bumper valance and undertray.
13. Fit and secure towing eye finisher.
14. Fit front grille.
Bumper - rear
$% 76.22.74
Remove

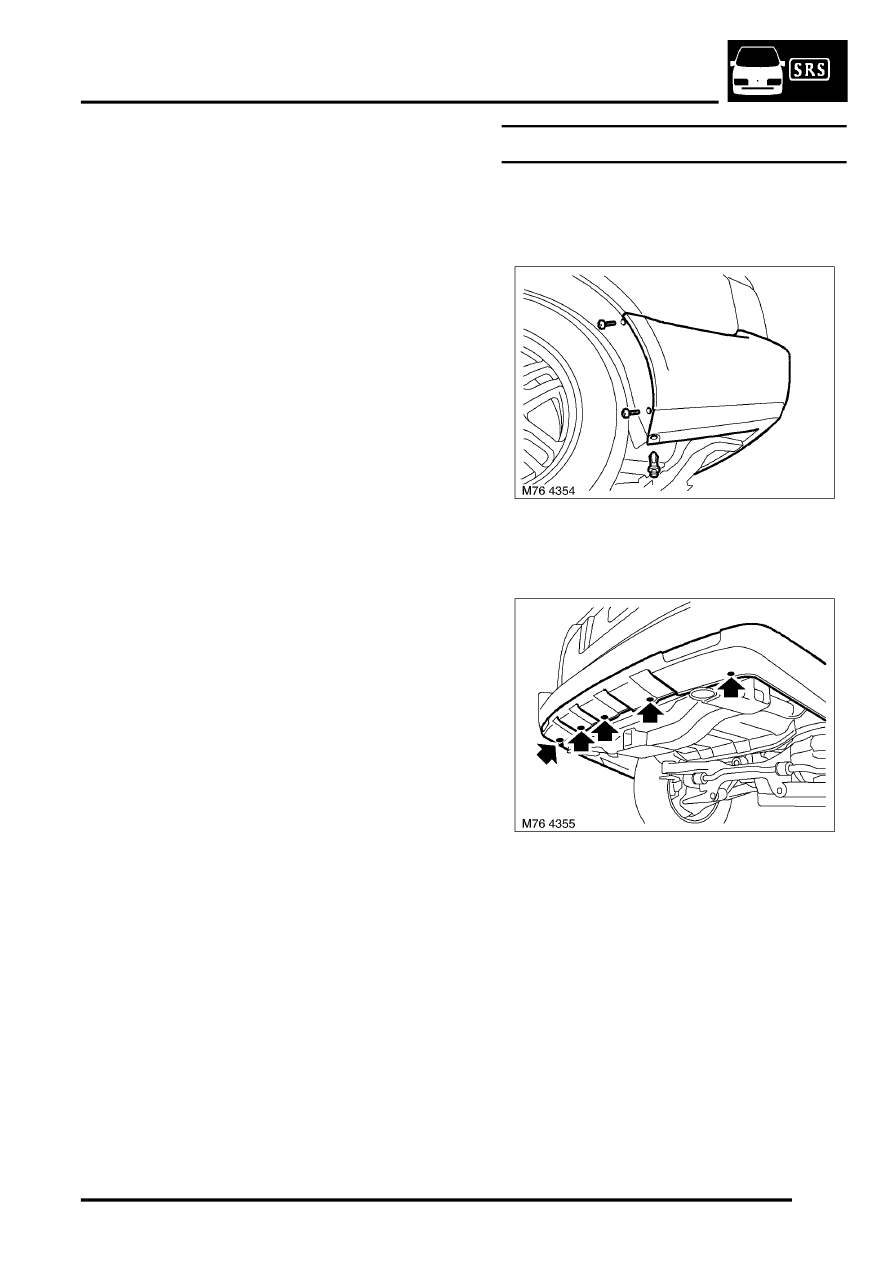

1. Remove 2 scrivets and 4 screws securing
wheel arch liner to rear bumper.
2. Remove 5 screws securing bumper apron to
armature.
