L322 Range Rover Service Procedures
EXTERIOR FITTINGS
REPAIRS
76-2-5

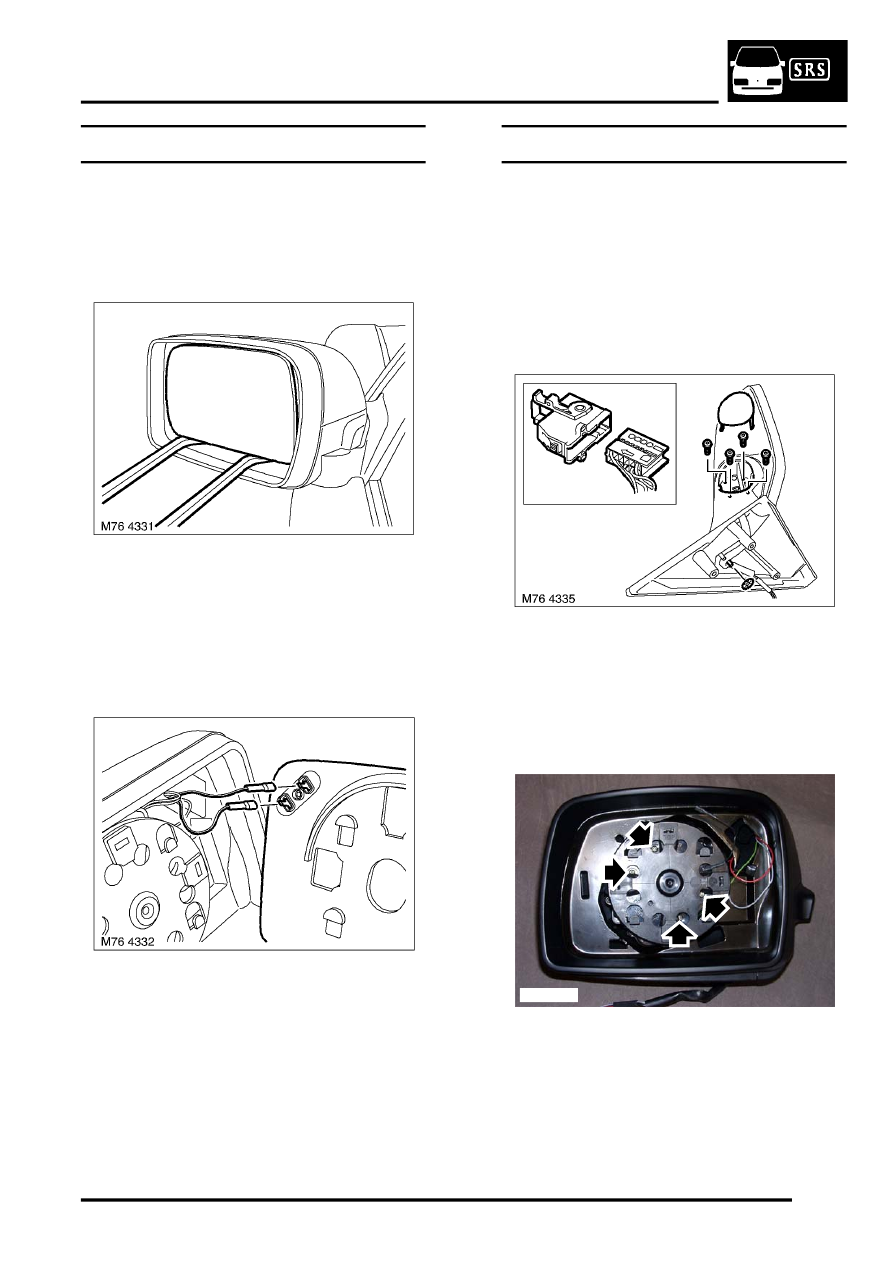

Mirror glass - exterior
$% 76.11.08
Remove
1. Using fingers, gently press lower edge of mirror
glass inboard to maximum rotation.
2. Position 2 levers to lower edge of mirror glass
surround, apply vertical leverage.
WARNING: Wear suitable eye protection
when removing and refitting glass.
3. Continue to apply an even but constant
pressure, until glass releases from mounting.
4. Disconnect 2 Lucar connections from Mirror
glass and remove.
Refit
1. Connect Lucars to mirror glass.
2. Position mirror glass to mounting, align 4
location pins to motor and secure clips.
3. Check operation of mirror.
Motor - exterior mirror
$% 76.11.09
Remove
1. Remove exterior mirror glass.
2. Remove exterior mirror.
3. Remove access cover from mirror.
4. Remove 4 Torx screws securing mirror
assembly to cheater casting.
5. Remove star washer securing mirror harness to
cheater plate.
6. Remove locking body from multiplug.
7. Remove 4 screws securing mirror motor to
assembly, withdraw harness and remove
motor.
M76 4336
