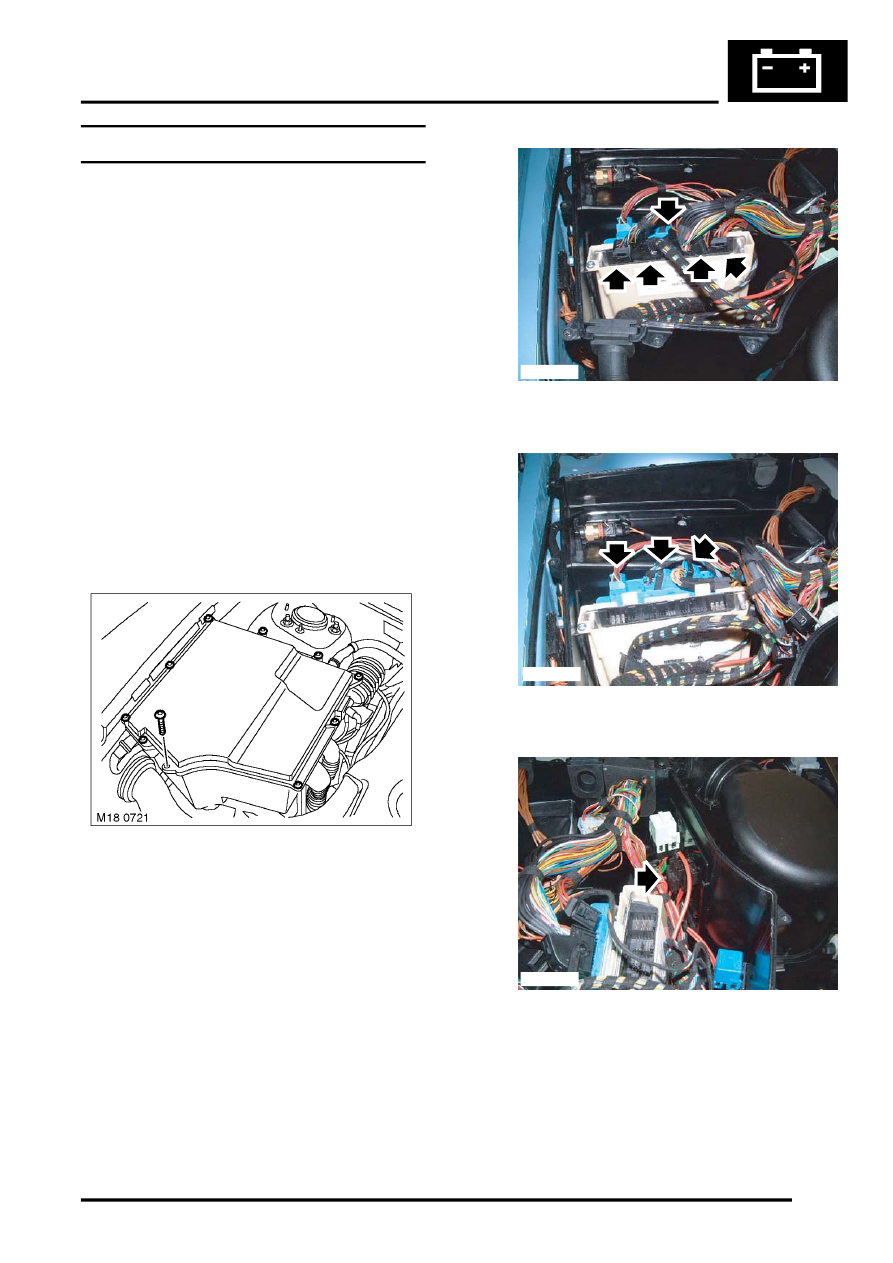

L322 Range Rover Service Procedures
HARNESSES
REPAIRS 86-8-11
39. Release CKP sensor lead from clip on RH side
of gearbox.
40. Release pre-catalyst harness leads from clips,
remove multiplugs from retaining clips and
disconnect.
41. Release gearbox breather pipe from clip on top
of gearbox.
42. Release post catalyst HO2S harnesses from
clips, remove multiplugs from clips and
disconnect.
43. Disconnect multiplug from gearbox housing.
44. Note engine harness route on engine and
remove harness.
Refit
1. Position and correctly route engine harness to
engine.
2. Connect multiplug to gearbox housing.
3. Connect multiplugs to post catalyst HO2S
sensors and secure with clips.
4. Secure gearbox breather pipe to clip on top of
gearbox.
5. Connect multiplugs to pre-catalyst HO2S
sensors and secure with clips.
6. Secure CKP sensor lead to clip on RH side of
gearbox.
7. Connect multiplug to CKP sensor.
8. Connect multiplug to engine wiring harness.
9. Fit and secure LH oxygen sensor lead to
gearbox bell housing.
10. Fit and secure inhibitor switch harness and
connect multiplug.
11. Reposition injector harness.
12. Connect fuel injector harness multiplugs.
13. Fit washer to fuel injector harness securing
stud.
14. Fit secondary air vacuum switching valve to RH
fuel injector securing stud.
15. Fit 2 nuts securing fuel injector harness to
induction manifold and tighten.
16. Connect multiplug to charcoal canister purge
solenoid valve.
17. Position and secure engine harness to brackets
with clips.
18. Connect fuel injector harness multiplugs.
19. Connect alternator harness to 2 clips on engine
cover mounting brackets.
20. Fit fuel hose and mounting bracket to LH fuel
injector harness securing stud.
21. Fit vacuum reservoir and mounting bracket to
LH fuel injector harness securing stud.
M30 1093
M30 1094
