L322 Range Rover Service Procedures
HARNESSES
86-8-12 REPAIRS
22. Fit 2 nuts securing fuel injector harness to
induction manifold and tighten.
23. Connect multiplugs to knock sensors.
24. Connect multiplug to CMP sensor.
25. Connect alternator harness to 4 clips.
26. Connect multiplug to alternator.
27. Connect multiplug to charcoal canister purge
solenoid valve.
28. Connect VCC multiplug harness to clip.
29. Connect multiplugs to valve body solenoids.
30. Fit new cable ties, align and secure harness.
31. Connect multiplug to CMP sensor.
32. Connect multiplug to throttle body.
33. Connect multiplug to alternator.
34. Connect multiplugs to ECT sensors.
35. Secure 2 engine harness grommets to 'E' box.
36. Position 2 engine harness earth leads, fit nuts
and tighten.
37. Connect engine harness multiplug in 'E' box.
38. Secure 3 relays to brackets in 'E' box.
39. Connect engine harness multiplug in 'E' box.
40. Connect 3 multiplugs to gearbox ECU.
41. Connect 5 multiplugs to engine ECM.
42. Fit 'E' box cover and tighten 10 securing Allen
screws.
43. Fit LH ignition coil cover.
V8, REPAIRS, Cover - Ignition coils - RH.
44. Fit RH ignition coil cover.
V8, REPAIRS, Cover - Ignition coils - LH.
45. Connect air intake hose.
V8, REPAIRS, Hose - air flow meter to
throttle body.
46. Connect battery earth lead.
Environmental box ('E' box)
$% 86.70.18
Before disconnecting the battery, ensure all text and
cautions in the battery disconnection section are
observed.
GENERAL INFORMATION, Electrical
Remove
1. Disconnect battery earth lead.

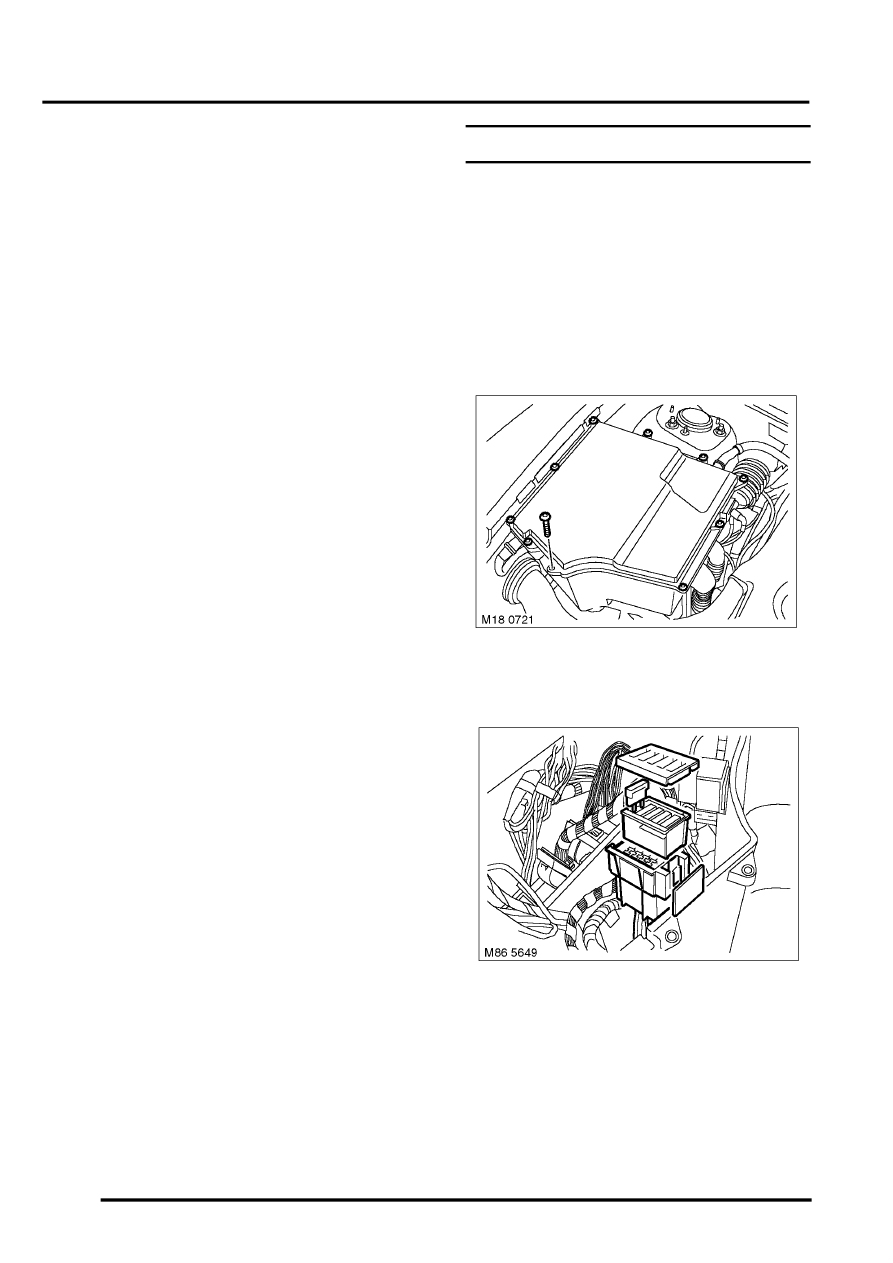

2. Remove 10 Allen screws securing 'E' box cover
and remove cover.
3. Depress clip and release fuse block from
mounting.
4. Disconnect fuse block assembly from
multiplug.
5. Depress clips and remove fuse block cover.
6. Remove fuse.
