L322 Range Rover Service Procedures
HARNESSES
REPAIRS 86-8-13
Refit
1. Fit fuse and secure fuse block cover.
2. Connect multiplug to harness.
3. Fit and secure fuse block to mounting.
4. Fit 'E' box cover and tighten Allen screws to 2
Nm (1.5 lbf.ft).
5. Connect battery earth lead.
Harness - tailgate - lower
$% 86.70.85
Before disconnecting the battery, ensure all text and
cautions in the battery disconnection section are
observed.
GENERAL INFORMATION, Electrical
Remove
1. Disconnect battery earth lead.

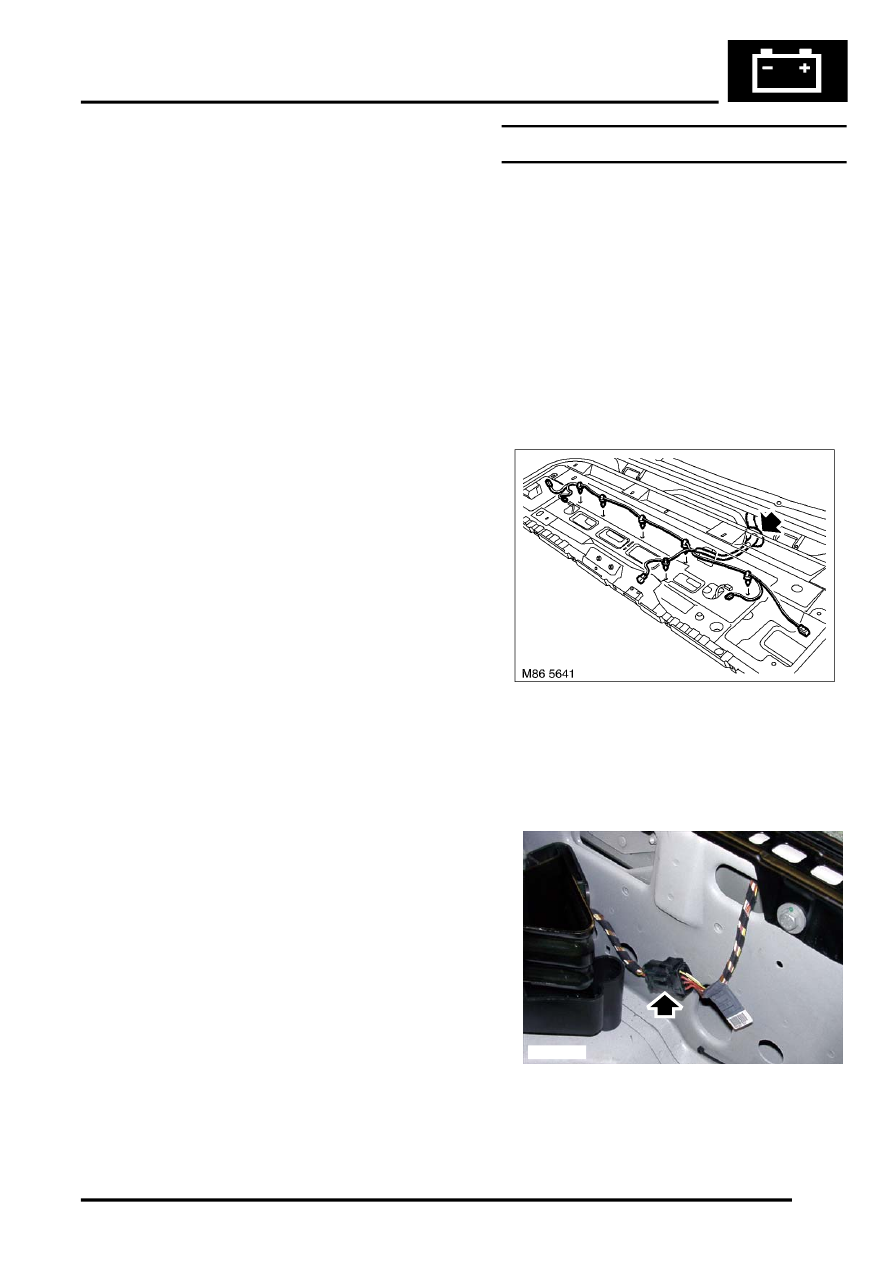

2. Remove lower tailgate finisher.
3. Disconnect 5 harness multiplugs.
4. Release 6 clips securing harness to tailgate.
5. Release harness gaiter from lower tailgate and
withdraw harness.
6. Raise and support spare wheel cover.
7. Disconnect lower tailgate harness multiplug
from body harness.
8. Release harness gaiter from body and remove
harness from vehicle.
M86 5648
