HEATING AND VENTILATION
80-12
REPAIRS

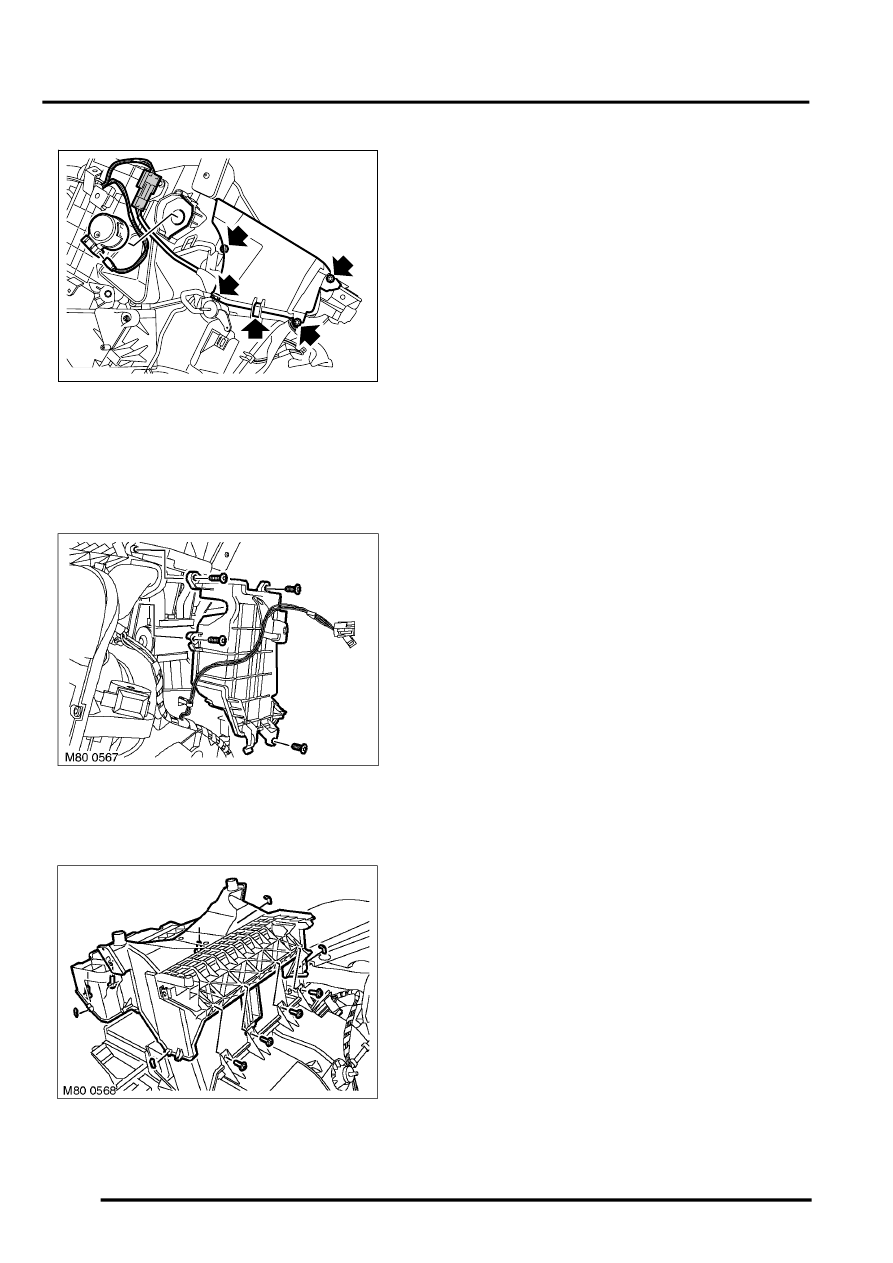

5. Remove 4 Torx screws and spring clip from RH
heating duct elbow. Remove elbow.
6. Disconnect multiplug from evaporator sensor.

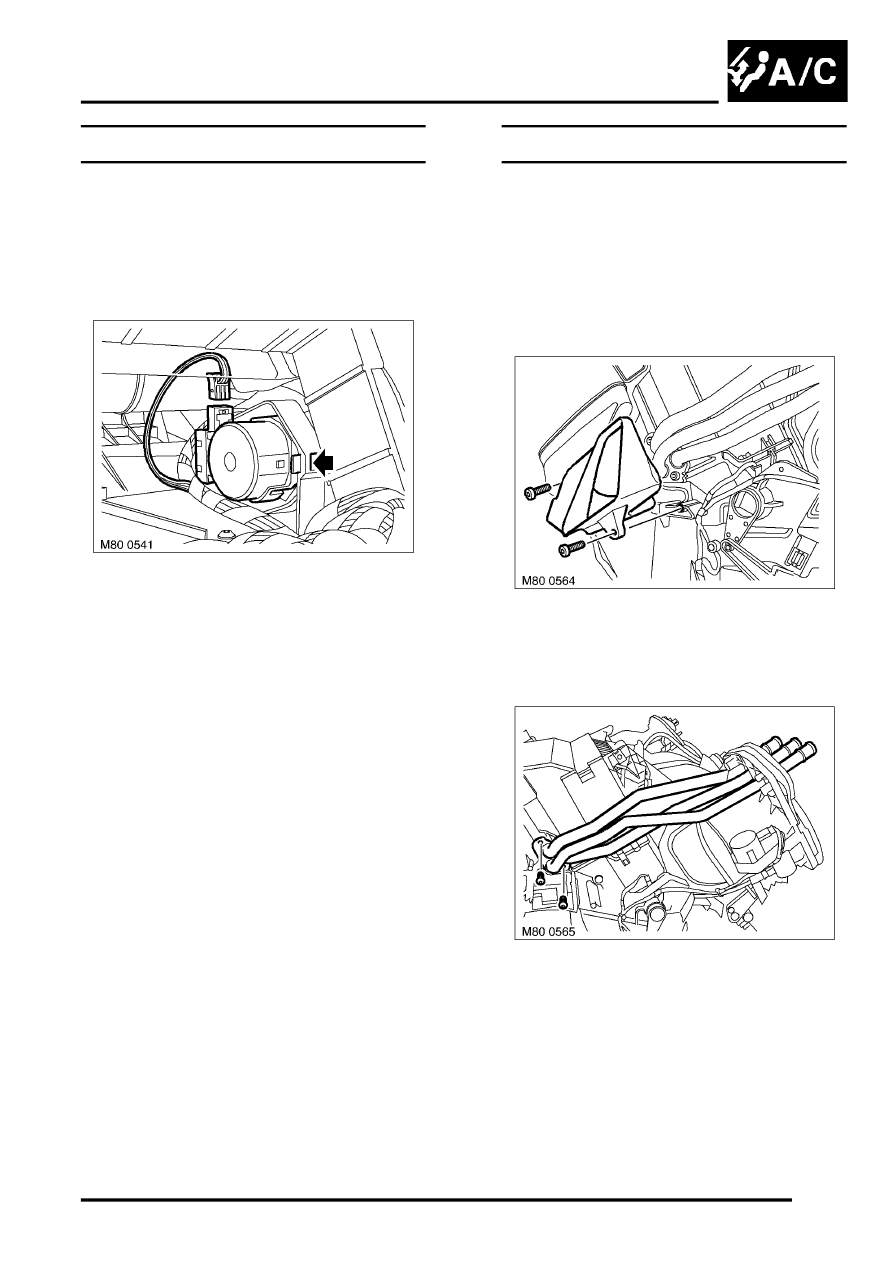

7. Disconnect multiplug and remove rear air vent
motor.
8. Remove 4 Torx screws securing TXV cover
and position aside.
9. Remove 7 Torx screws and 3 spring clips from
lower HEVAC access panel.
10. Release 2 clips and remove access panel.
11. Remove matrix.
Refit
1. Fit matrix to HEVAC assembly, position access
panel, secure with clips and screws.
2. Fit and secure TXV cover.
3. Fit motor to heating assembly, connect
multiplug.
4. Connect multiplug to evaporator sensor.
5. Position RH heating duct elbow to HEVAC
assembly, secure with clip and screws.
6. Clean heating pipes and matrix mating faces.
7. Fit new 'O' rings to heating pipes, position pipes
to matrix, fit bolts and tighten to 10 Nm (7 lbf.ft).
8. Position LH heating duct elbow to HEVAC
assembly, secure with screws.
9. Fit HEVAC assembly to fascia.
REPAIRS, Heater unit/HEVAC - remove for
access & refit.
M80 0566
