L322 Range Rover Service Procedures
MANIFOLD AND EXHAUST SYSTEM - V8
30-2-10 REPAIRS

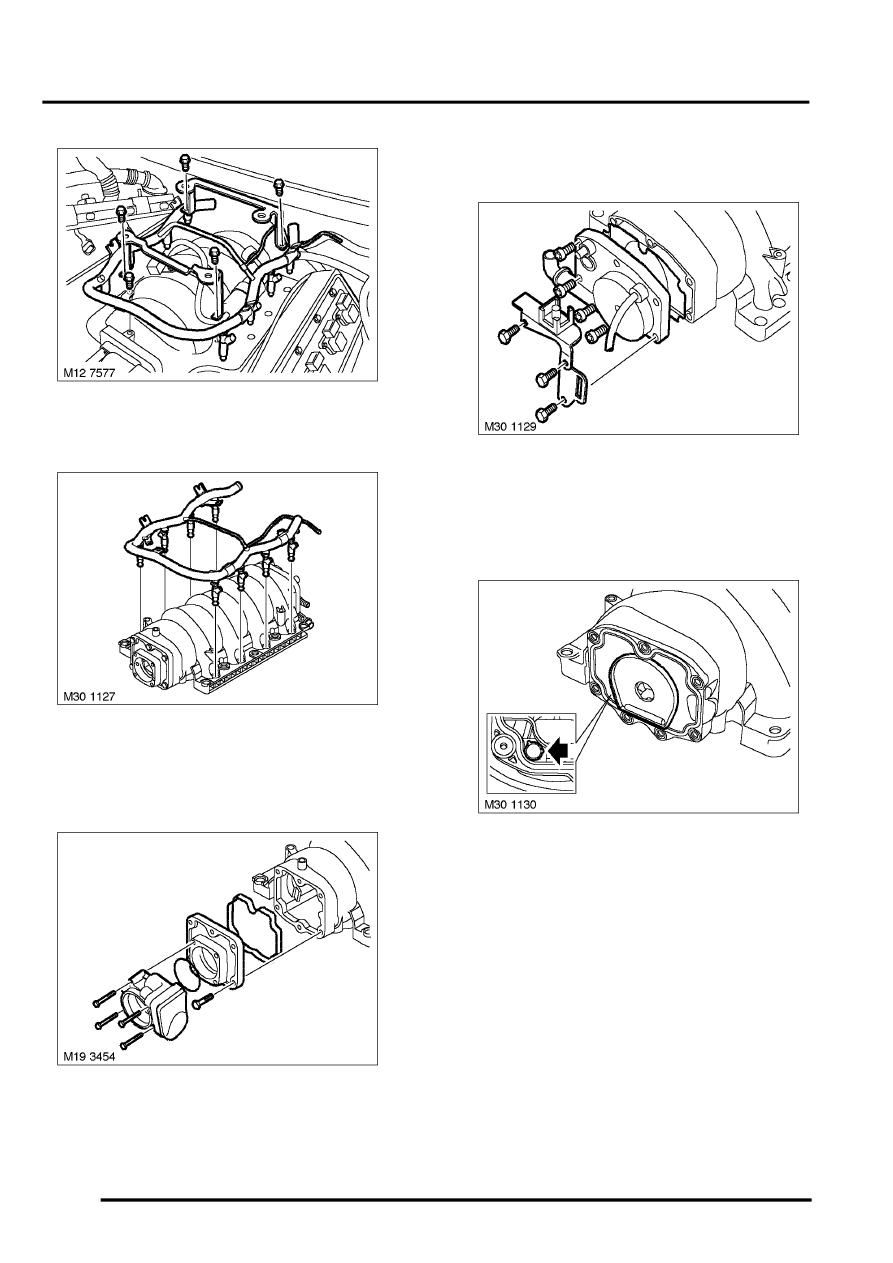

39. Remove 4 bolts securing engine cover brackets
and remove brackets from inlet manifold.
40. Remove bolt securing fuel rail to inlet manifold
and remove fuel rail with injectors.
41. Remove and discard lower 'O' rings from
injectors.
42. Remove 4 bolts securing throttle housing to
inlet manifold and remove throttle body.
43. Remove and discard 'O' ring from throttle
housing.
44. Remove 6 Torx screws securing front cover to
inlet manifold and remove front cover.
45. Remove and discard front cover 'O' ring.
46. Remove 3 bolts securing 2 brackets to manifold
rear cover.
47. Remove 2 brackets.
48. Remove 4 Torx screws securing inlet manifold
rear cover and remove cover.
49. Remove and discard 'O' ring.
50. Depress locking collars and remove vent pipe
from inlet manifold.
Refit
1. Fit vent pipe to inlet manifold.
2. Fit new 'O' ring to rear cover.
3. Fit rear cover to inlet manifold and tighten 4
Torx screws to 10 Nm (7 lbf.ft).
4. Fit 2 brackets and secure with 3 bolts and
tighten to 10 Nm (7 lbf.ft).
5. Fit new 'O' ring to front cover.
6. Fit front cover to manifold and tighten 6 Torx
screws to 10 Nm (7 lbf.ft).
7. Fit new throttle body seal.
8. Fit throttle housing to inlet manifold and tighten
4 bolts to 10 Nm (7 lbf.ft).
9. Lubricate new 'O rings and fit to injectors.
