L322 Range Rover Service Procedures
MANIFOLD AND EXHAUST SYSTEM - V8
REPAIRS
30-2-9

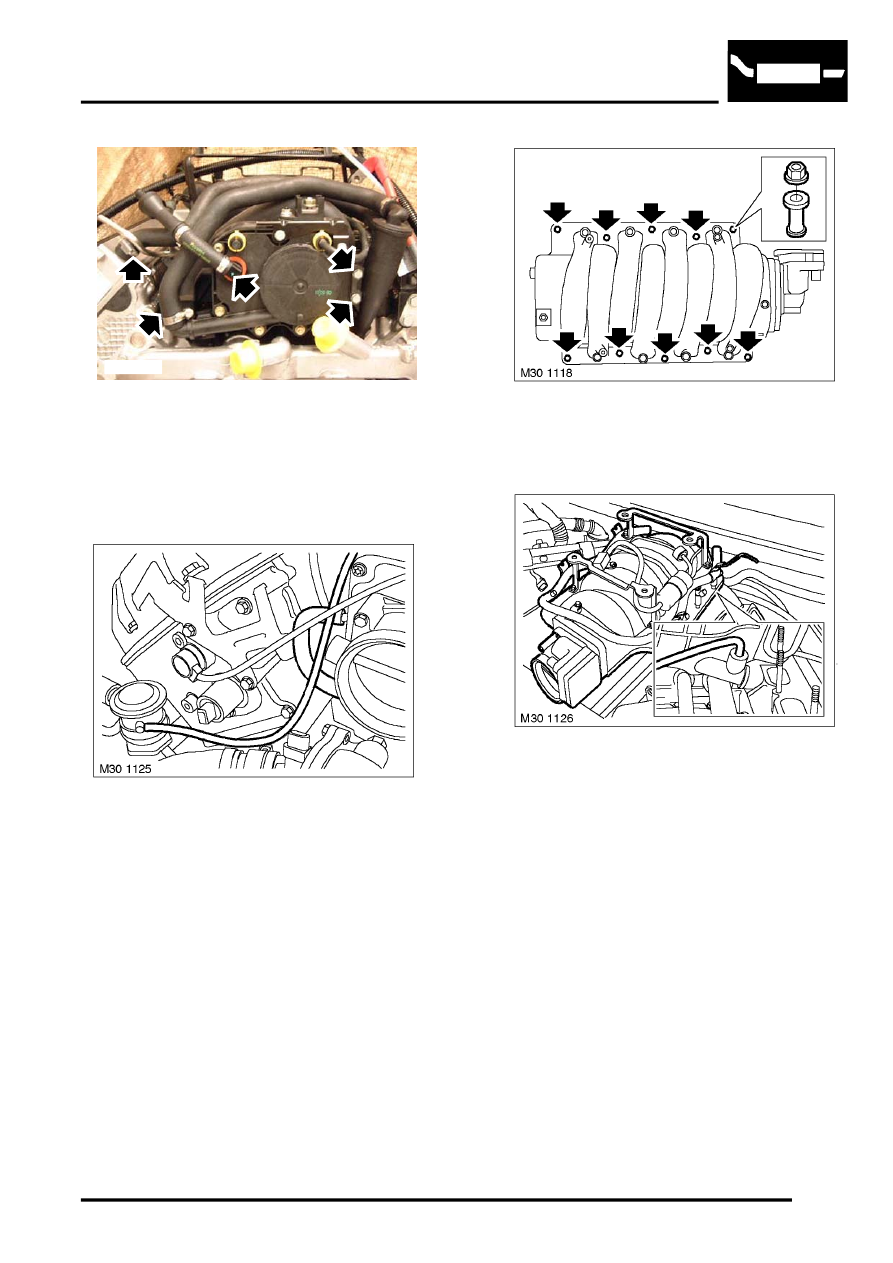

30. Release 2 clips and disconnect 2 breather
hoses.
31. Remove clip and disconnect brake vacuum
hose.
32. Remove 2 bolts securing oil separator to
manifold.
33. Remove clip and disconnect purge solenoid
valve vacuum hose. Disconnect SAI vacuum
pipe.
34. Remove 10 nuts securing inlet manifold to
cylinder heads and remove 10 spacers.
35. Position brake servo vacuum pipe aside.
36. Lift inlet manifold and disconnect breather pipe.
37. Remove inlet manifold and discard 4 gaskets.
NOTE: Do not carry out further dismantling if
component is removed for access only.
38. Disconnect vacuum pipe and remove solenoid
valve.
M30 1124
