Range Rover V8 Manifold and Exhaust System Gasket Repairs
MANIFOLD AND EXHAUST SYSTEM - V8
30-2-8
REPAIRS

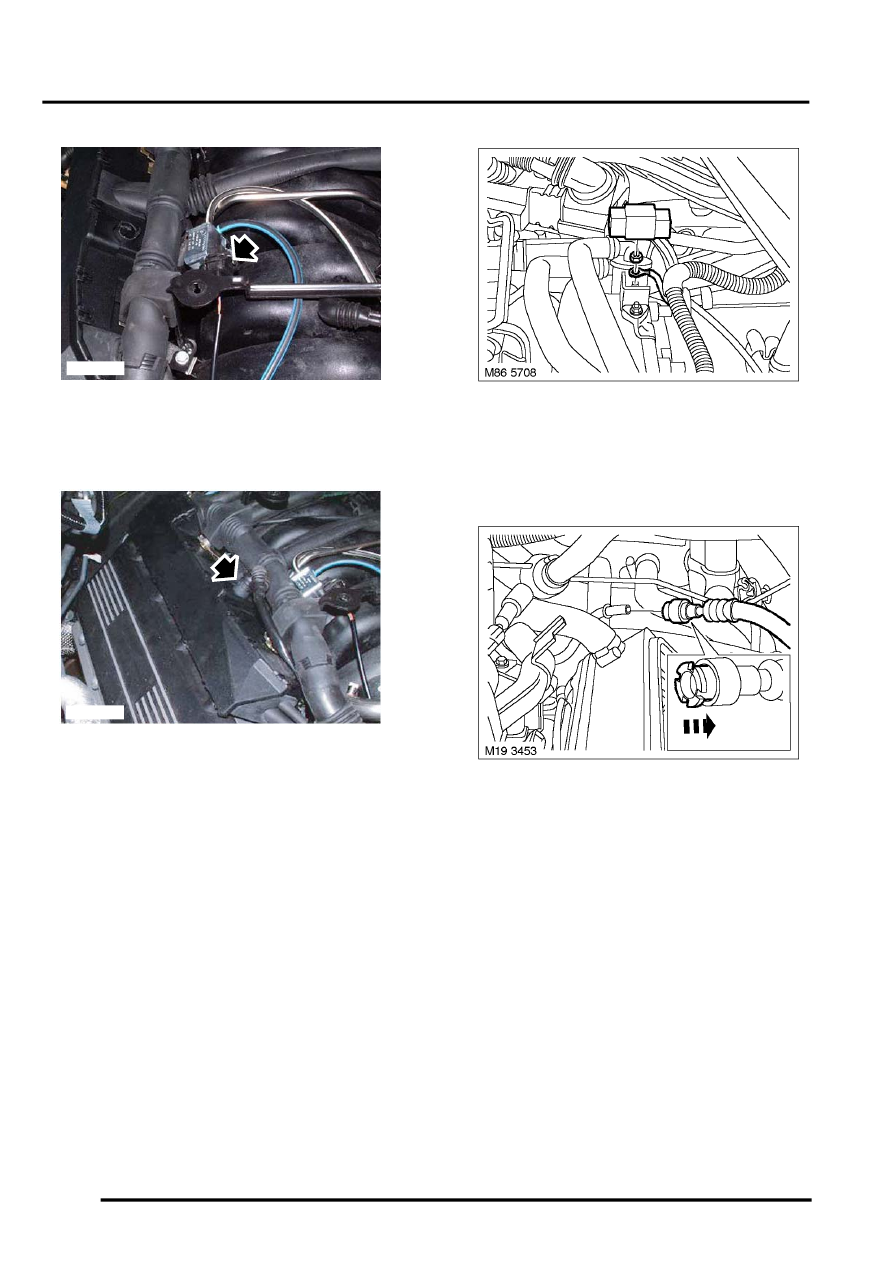

20. Disconnect multiplug from SAI solenoid.
21. Remove SAI solenoid valve from RH fuel
injector harness securing stud.
22. Disconnect multiplug from knock sensor.
23. Remove washer from fuel injector harness
securing stud.
24. Disconnect multiplugs from fuel injectors.
25. Reposition injector harness.
26. Remove air intake plenum.
27. Release terminal cover, remove nut and
disconnect 2 cables from terminal post.
28. Depressurise fuel system.
ADJUSTMENT, Fuel system - depressurise.
29. Disconnect fuel feed hose from fuel rail.
CAUTION: Always fit plugs to open
connections to prevent contamination.
M86 5701
M86 5698
