SEATS

REPAIRS

76-5-9

Cover - rear seat cushion - RH

$% 78.40.04

Remove

1. Remove seat base finisher.

 +

 SEATS, REPAIRS, Finisher - seat

base rear.

2. Remove seat fold mechanism.

 +

 SEATS, REPAIRS, Hinge - rear seat

- side.

3. Disconnect multiplug from squab harness.
4. Remove Torx bolt securing squab frame to seat

frame, separate frames.

5. Release seat cover both sides and front

beading, raise cover and cushion.

6. Release heated seat harness multiplug from

retaining clip and feed harness through frame.

7. Release 1 stud and rear beading securing seat

cover to frame, remove cover and cushion.

8. Release 11 staples securing seat cover to

cushion.

9. Remove 16 hog rings securing cover to

cushion, remove cover.

Refit

1. Position seat cover to cushion and secure with

hog rings.

2.  Fit 11 staples securing cover under cushion.
3. Position cushion to frame and secure rear of

cover.

4. Fit stud securing rear cover.
5. Feed heated seat harness through seat frame

and secure multiplug to retaining clip.

6. Fit seat cover sides and front beading.
7. Fit Torx bolt securing squab frame to seat

frame, tighten to 45 Nm (33 lbf.ft).

8. Connect multiplug to squab harness.
9. Fit seat fold mechanism.

 +

 SEATS, REPAIRS, Hinge - rear seat

- side.

10. Fit seat base finisher.

 +

 SEATS, REPAIRS, Finisher - seat

base rear.

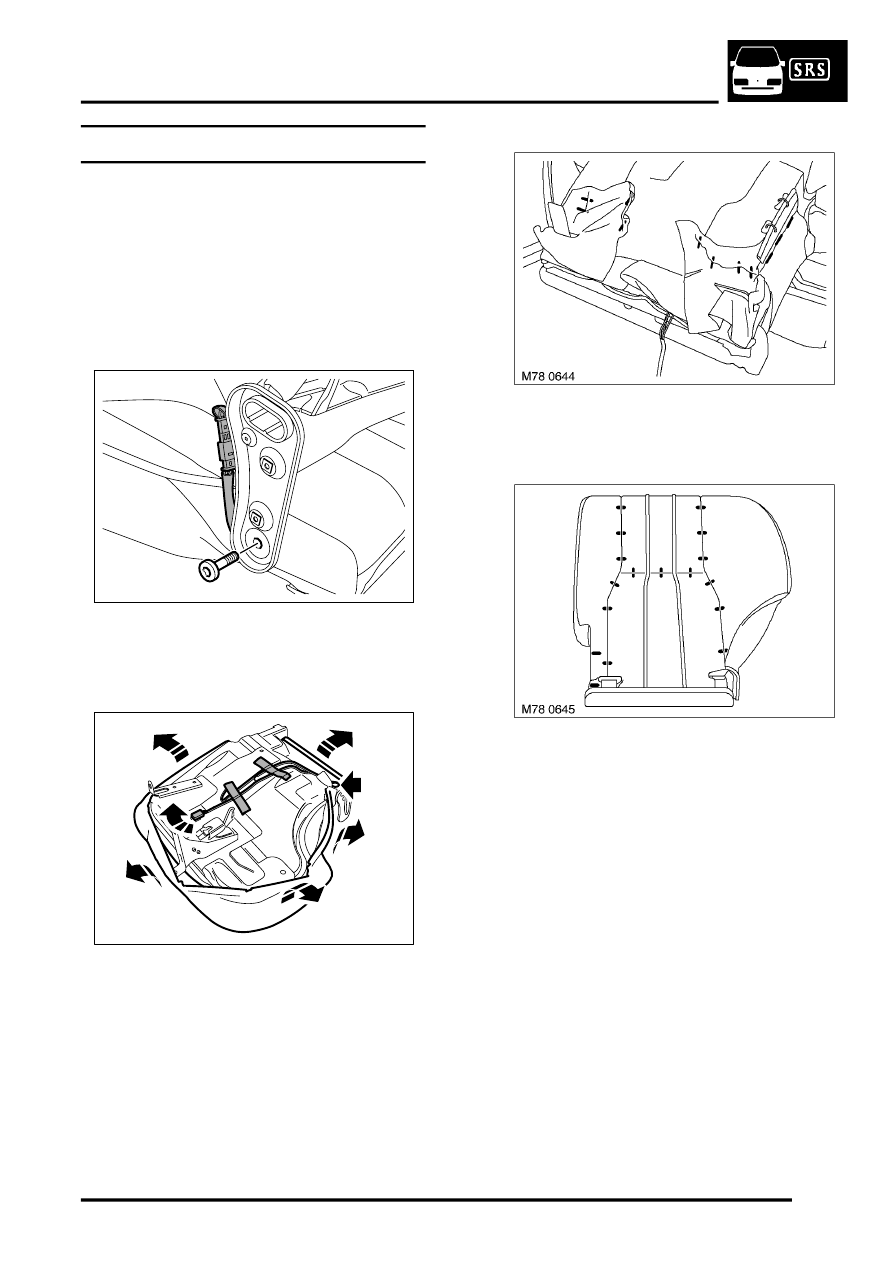

M78 0642

M78 0643
