L322 Range Rover Service Procedures
SEATS
76-5-10 REPAIRS

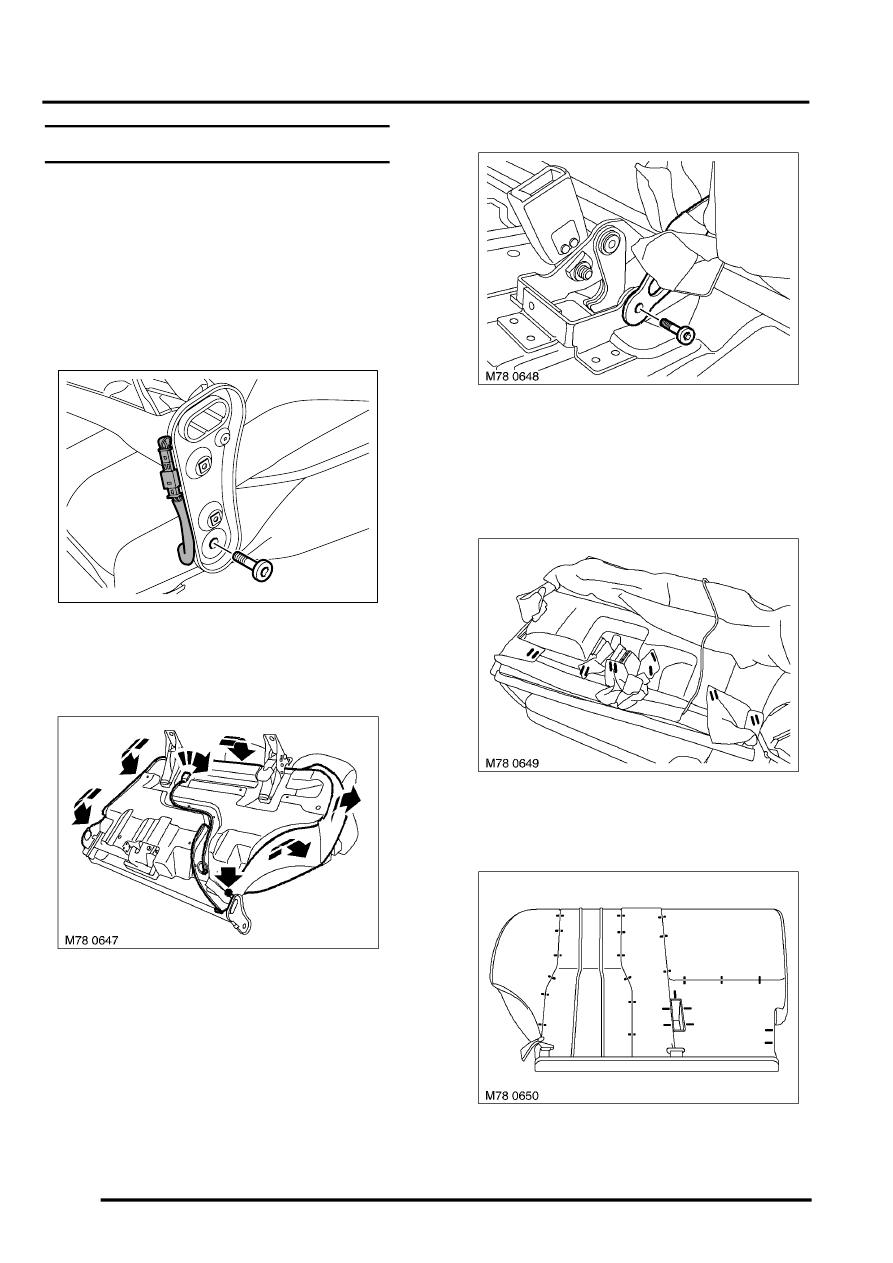

Cover - rear seat cushion - LH
$% 78.40.05
Remove
1. Remove LH seat base finisher.
SEATS, REPAIRS, Finisher - seat
2. Remove seat fold mechanism.
SEATS, REPAIRS, Hinge - rear seat
3. Disconnect multiplug from squab harness.
4. Remove Torx bolt securing squab frame to seat
frame, separate frames.
5. Release seat cover both sides and front
beading, raise cover and cushion.
6. Release heated seat harness multiplug from
retaining clip and feed harness through frame.
7. Remove and discard Torx bolt securing seat
belt to seat base frame.
8. Release seat belt from seat cushion and cover.
9. Release stud and rear beading securing seat
cover to frame, remove cover and cushion.
10. Release 11 staples securing seat cover to
cushion.
11. Release 25 hog rings securing cover to cushion
and remove cover.
M78 0646
