SEATS

76-5-38 REPAIRS

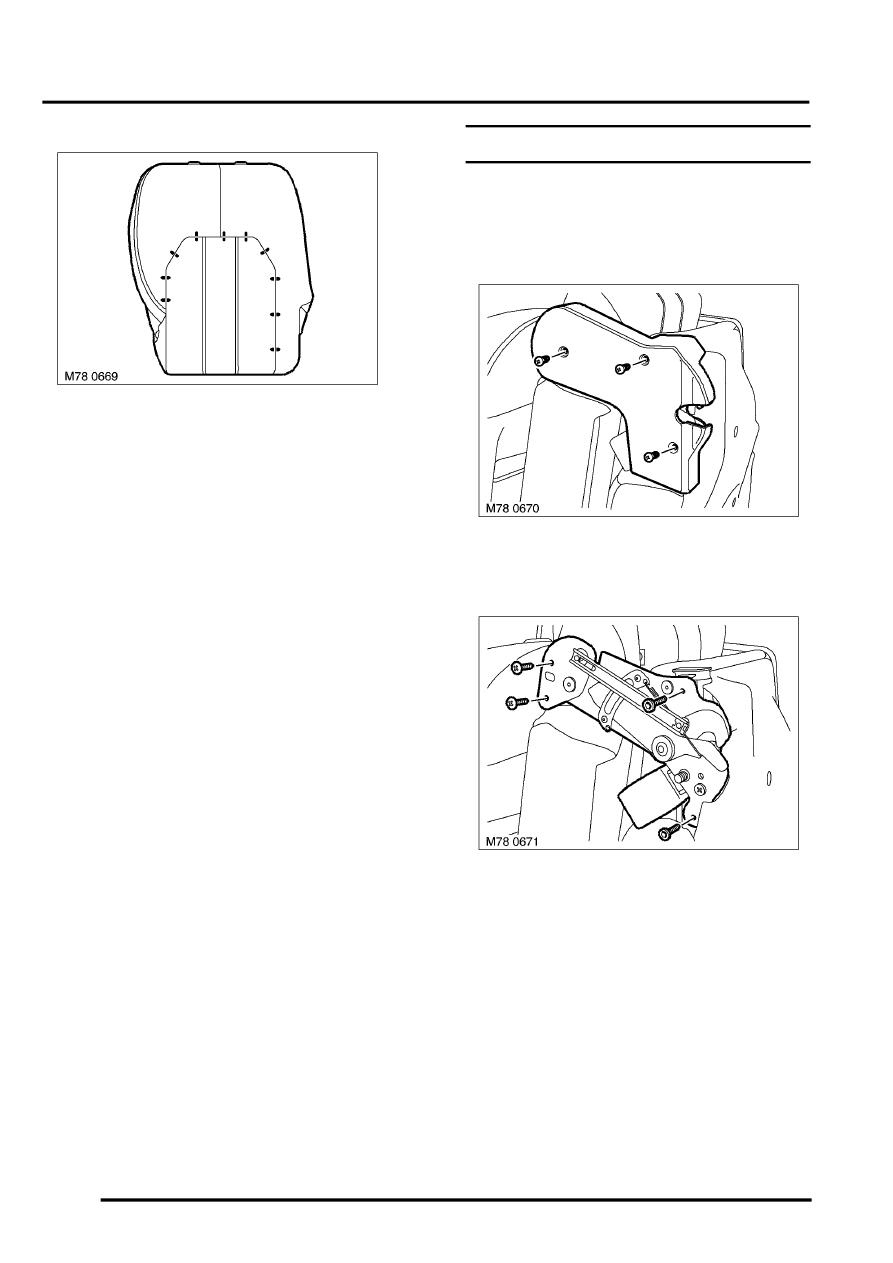

11. Remove 16 hog rings securing cover to

cushion, remove cover.

Refit

1. Position cover to cushion and secure with hog

rings.

2. Position and fit headrest guides in squab

assembly.

3. Position and fit seat fold release button

escutcheon.

4. Secure squab cover beading to sides and

bottom of frame.

5. Fit rear squab finisher.

 +

 SEATS, REPAIRS, Finisher - rear

seat squab.

6. Position squab frame to seat frame and secure

LH side with Torx bolt, tighten to 25 Nm (18
lbf.ft).

7. Connect squab cover heated seat circuit

multiplug.

8. Fit seat fold mechanism.

 +

 SEATS, REPAIRS, Hinge - rear seat

- side.

9. Fit seat base finisher.

 +

 SEATS, REPAIRS, Finisher - seat

base rear.

Hinge - rear seat - side

$% 78.90.43

Remove

1. Fold rear seat forward.

2. Remove 3 screws securing mechanism

finisher, remove finisher.

3. Remove and discard 2 Torx bolts securing

mechanism to squab frame.

4. Remove 2 Allen bolts securing mechanism to

seat frame, remove mechanism.
