SEATS
REPAIRS 76-5-11
Refit
1. Position seat cover to cushion and secure with
hog rings.
2. Fit 14 staples securing cover under cushion.
3. Position cushion to frame and secure rear of
cover.
4. Fit stud securing rear cover.
5. Feed heated seat harness through seat frame
and secure multiplug to retaining clip.
6. Position seatbelt lower buckle to frame and
secure with Torx bolt tighten to 31 Nm (23
lbf.ft).
7. Fit seat cover sides and front beading.
8. Fit Torx bolt securing squab frame to seat
frame, tighten to 45 Nm (33 lbf.ft).
9. Connect multiplug to squab harness.
10. Fit seat fold mechanism.
SEATS, REPAIRS, Hinge - rear seat
11. Fit seat base finisher.
SEATS, REPAIRS, Finisher - seat

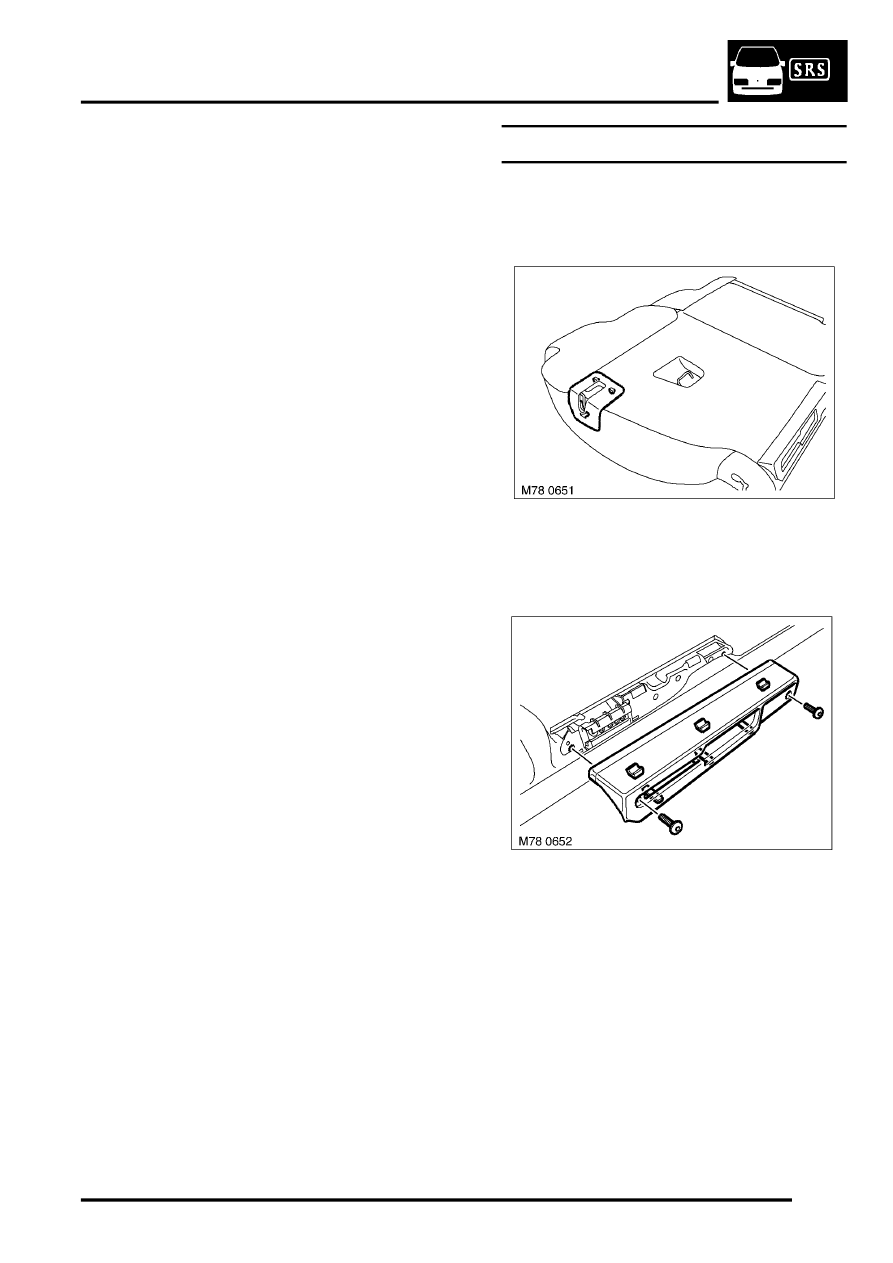

Finisher - rear seat squab
$% 78.55.03
Remove
1. Fold rear seat forward.
2. Release 3 clips securing latch finisher, remove
finisher.
3. Remove 2 screws securing lower squab
finisher.
4. Release 3 retaining clips securing finisher and
remove finisher.
