L322 Range Rover Service Procedures
SEATS
76-5-28 REPAIRS
Switch pack - seat memory
$% 78.70.91
Remove
1. Raise seat.
2. Remove screw securing rear of outer valance.
3. Carefully release 3 retaining clips securing
outer valance.
4. Release switch pack from 3 retaining clips.
5. Disconnect 4 multiplugs and remove switch
pack.
Refit
1. Connect 4 multiplugs to switch pack.
2. Fit switch pack to outer valance and secure 3
retaining clips.
3. Position outer valance to seat base and secure
3 retaining clips.
4. Fit screw to secure rear of seat valance.
5. Lower seat to original position.

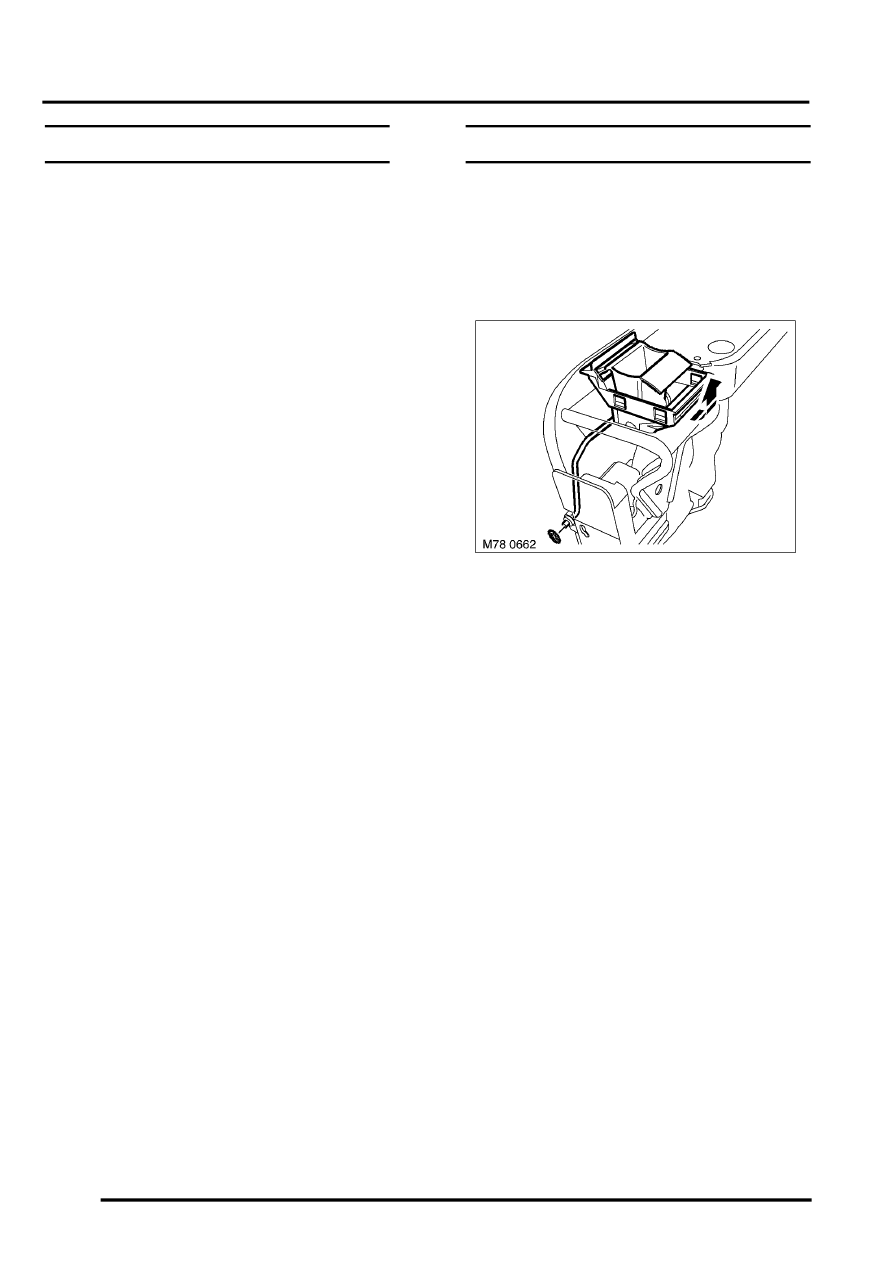

Lever assembly - rear squab release
$% 78.80.03
Remove
1. Remove squab cover and pad from frame.
SEATS, REPAIRS, Cover - squab -
2. Remove and discard retaining clip securing
operating lever to latch assembly.
3. Release operating lever to latch assembly.
4. Release 3 retaining clips securing lever
assembly to frame, remove assembly.
Refit
1. Position lever assembly to frame, secure
retaining clips.
2. Position and fit operating lever to latch
assembly, secure with retaining clip.
3. Fit squab cover and pad to frame.
