Colour: BLACK Gender: Female
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C0040 Diagnostic socket › Colour: BLACK Gender: Female
ConnectorsColour: BLACK Gender: Female
| Cav 1 | Col GW | Cct ALL |
| 4 | NB | ALL |
| 5 | NB | ALL |
| 7 | WPY | ALL |
| 8 | WP | ALL |
| 9 | B | ALL |
| 16 | RUY | ALL |

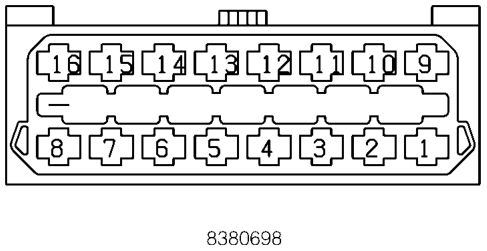

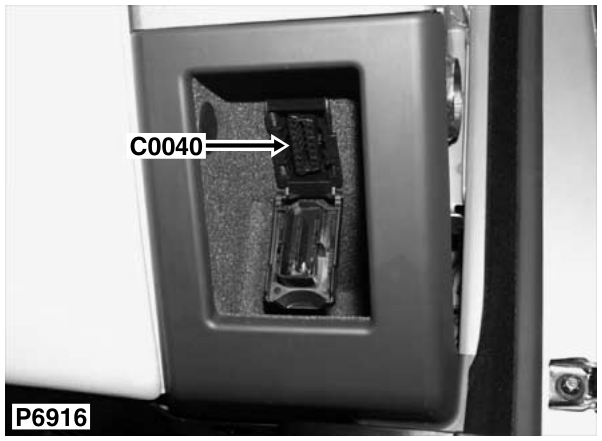

Description: Diagnostic socket Location: Behind driver side of fascia
Colour: BLACK Gender: Female
