Description: Switch-Lighting
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C0041 Switch-Lighting › Description: Switch-Lighting
ConnectorsDescription: Switch-Lighting
| Cav 1 | Col YG | Cct ALL |
| 2 | B | ALL |
| 3 | SB | ALL |
| 7 | NB | ALL |
| 8 | YB | ALL |
| 9 | YW | ALL |
| 10 | G | ALL |
| 11 | Y | ALL |
Description: Switch-Lighting

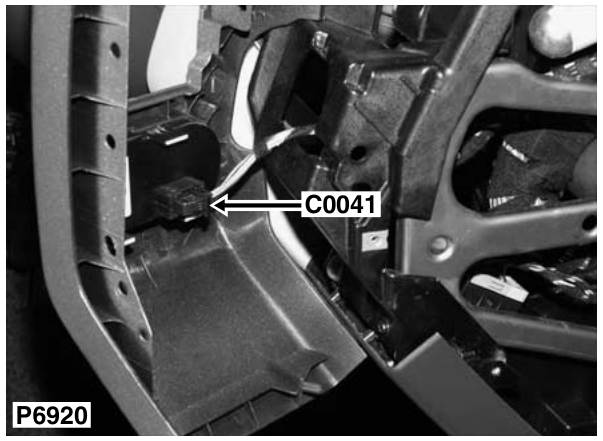

Location: Behind driver side of fascia
Colour: BLACK Gender: Female
