Colour: NATURAL Gender: Female
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C0071 Motor-Headlamp levelling-LH › Colour: NATURAL Gender: Female
ConnectorsColour: NATURAL Gender: Female
| Cav 1 | Col YR | Cct 22 |
| 2 | YN | 22 |
| 3 | UR | 22 |
| 4 | UN | 22 |

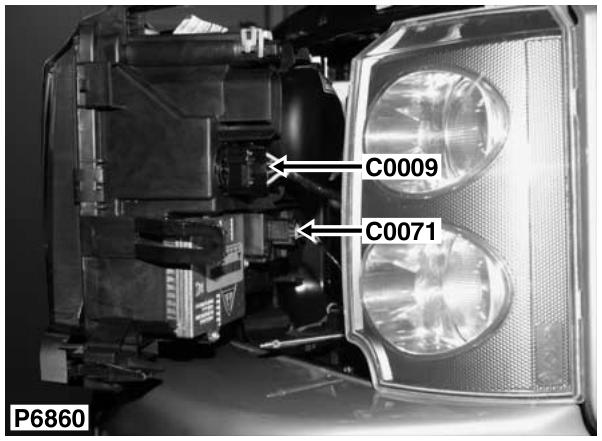

Description: Motor-Headlamp levelling-LH Location: Front of vehicle - LH side
Colour: NATURAL Gender: Female
