Colour: NATURAL Gender: Female
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C0070 Motor-Headlamp levelling-RH › Colour: NATURAL Gender: Female
ConnectorsColour: NATURAL Gender: Female
| Cav 1 | Col YB | Cct 22 |
| 2 | YN | 22 |
| 3 | UB | 22 |
| 4 | UN | 22 |

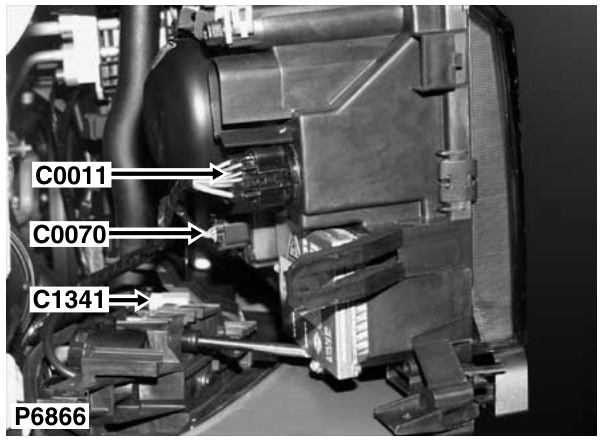

Description: Motor-Headlamp levelling-RH Location: Front of vehicle - RH side
Colour: NATURAL Gender: Female
