Description: Lamp-Tail-LH
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C0121 Lamp-Tail-LH › Description: Lamp-Tail-LH

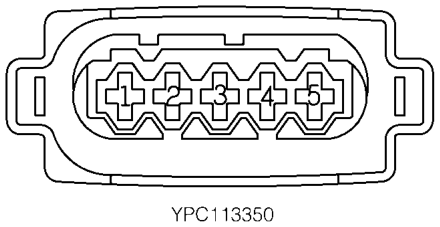

ConnectorsDescription: Lamp-Tail-LH
| Cav 1 | Col UG | Cct ALL |
| 2 | BU | ALL |
| 3 | YB | ALL |
| 4 | SP | ALL |
| 5 | N | ALL |
Description: Lamp-Tail-LH

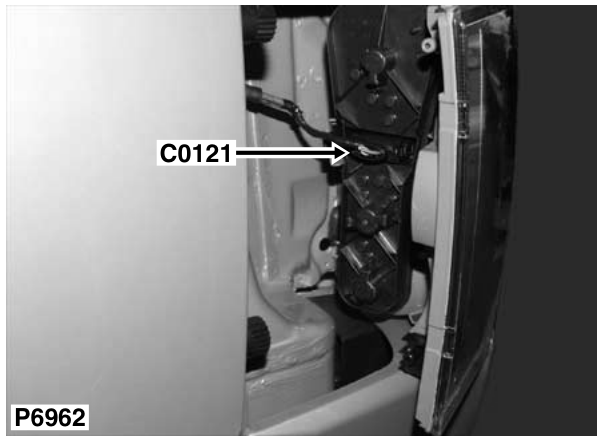

Location: LH rear of vehicle
Colour: BLACK Gender: Female
