Description: Lamp-Tail-RH
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C0125 Lamp-Tail-RH › Description: Lamp-Tail-RH

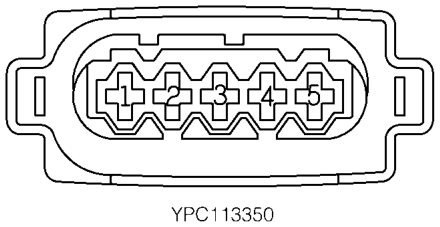

ConnectorsDescription: Lamp-Tail-RH
| Cav 1 | Col UN | Cct ALL |
| 2 | BU | ALL |
| 3 | YB | ALL |
| 4 | SW | ALL |
| 5 | N | ALL |
Description: Lamp-Tail-RH

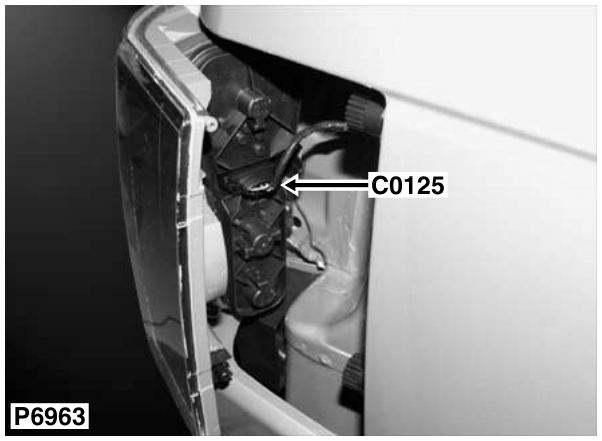

Location: RH rear of vehicle
Colour: BLACK Gender: Female
