Colour: BLUE Gender: Female
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C0193 ECU-Electronic automatic transmission › Colour: BLUE Gender: Female
ConnectorsColour: BLUE Gender: Female
| Cav 1 | Col NP | Cct ALL |
| 2 | BP | ALL |
| 3 | UB | ALL |
| 9 | WR | ALL |
| 10 | WB | ALL |
| 18 | WU | ALL |
| 19 | US | ALL |
| 20 | UY | ALL |

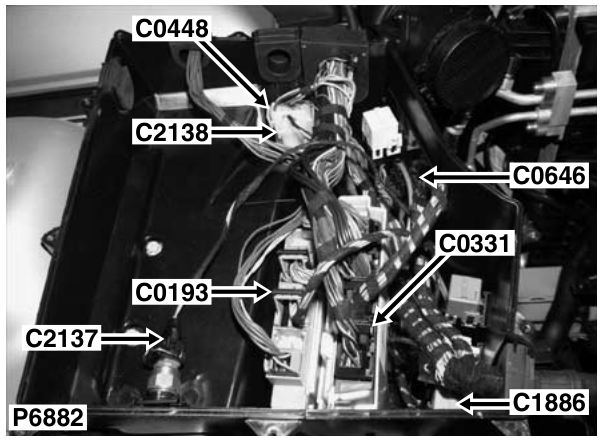

Description: ECU-Electronic automatic transmission Location: Inside E-box
Colour: BLUE Gender: Female
