Description: Accelerometer
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C0195 Accelerometer › Description: Accelerometer

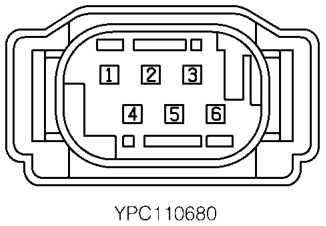

ConnectorsDescription: Accelerometer
| Cav 1 | Col WUY | Cct ALL |
| 2 | WRY | ALL |
| 3 | WSY | ALL |
| 4 | BRY | ALL |
| 5 | NBY | ALL |
| 6 | UWY | ALL |
Description: Accelerometer

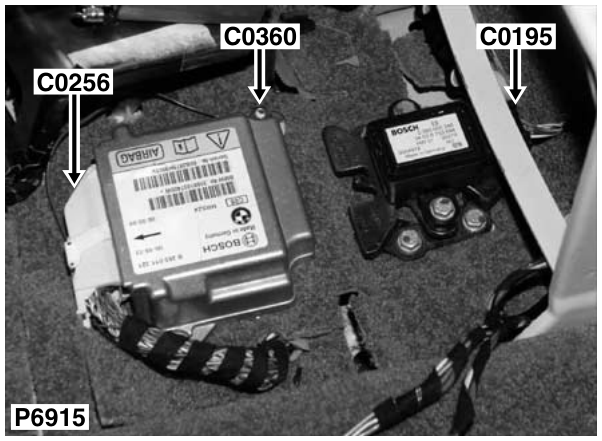

Location: Beneath centre console
Colour: BLACK Gender: Female
