Description: Instrument Pack
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C0230 Instrument Pack › Description: Instrument Pack
ConnectorsDescription: Instrument Pack
| Cav 1 | Col NB | Cct ALL |
| 3 | U | ALL |
| 4 | NG | ALL |
| 5 | UNY | ALL |
| 7 | RY | ALL |
| 8 | SR | ALL |
| 13 | NP | ALL |
| 15 | SB | ALL |
| 17 | GU | ALL |
Description: Instrument Pack

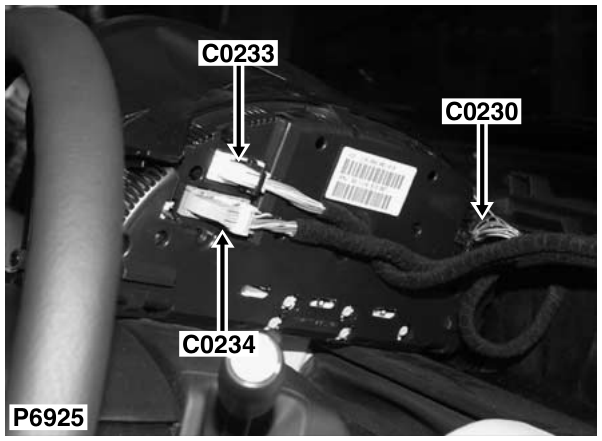

Location: Behind instrument pack
Colour: BLACK Gender: Female
