Description: Clock-Analogue
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C0232 Clock-Analogue › Description: Clock-Analogue
ConnectorsDescription: Clock-Analogue
| Cav 1 | Col RG | Cct ALL |
| 2 | NB | ALL |
| 3 | SR | ALL |
| 4 | WSY | ALL |

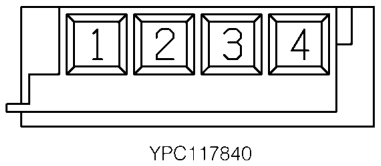

Description: Clock-Analogue

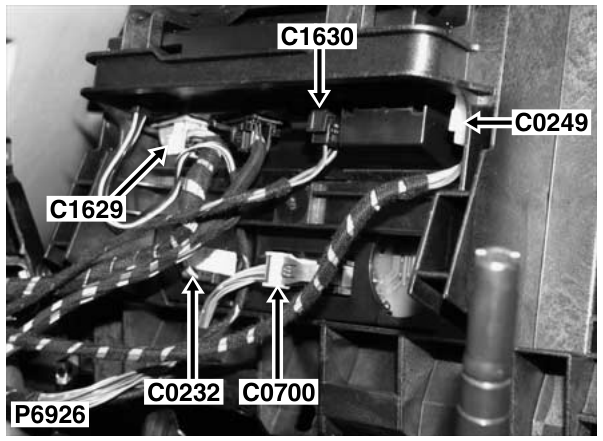

Location: Behind centre console
Colour: BLACK Gender: Female
