Description: Instrument Pack
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C0233 Instrument Pack › Description: Instrument Pack
ConnectorsDescription: Instrument Pack
| Cav 1 | Col WP | Cct ALL |
| 3 | BW | 15 |
| 7 | WRY | ALL |
| 8 | WSY | ALL |
| 9 | NB | ALL |
| 10 | NB | ALL |
| 11 | BR | ALL |
| 12 | PG | ALL |
| 14 | BG | ALL |
| 15 | RY | ALL |
| 16 | GU | ALL |
| 17 | WU | ALL |
| 18 | WR | ALL |

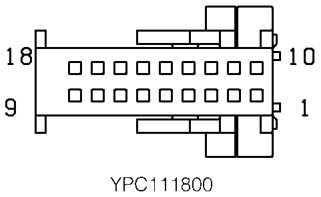

Description: Instrument Pack

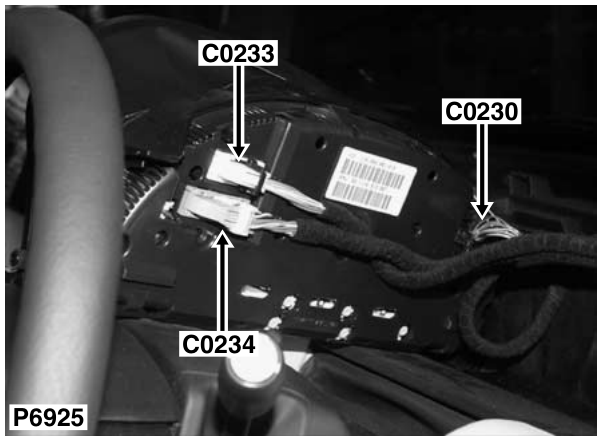

Location: Behind instrument pack
Colour: BLACK Gender: Female
