Description: Instrument Pack
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C0234 Instrument Pack › Description: Instrument Pack
ConnectorsDescription: Instrument Pack
| Cav 1 | Col NR | Cct ALL |
| 4 | Y | ALL |
| 5 | YR | ALL |
| 7 | BRY | ALL |
| 8 | YB | 1 |
| 9 | YN | 1 |
| 12 | NBY | ALL |
| 14 | UR | ALL |
| 16 | NBW | ALL |
| 18 | NY | ALL |
| 19 | NP | ALL |
| 20 | YN | ALL |
| 22 | UN | ALL |
| 23 | BRW | ALL |
| 25 | SP | ALL |

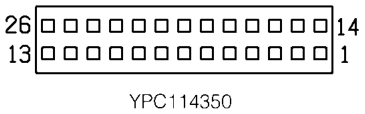

Description: Instrument Pack

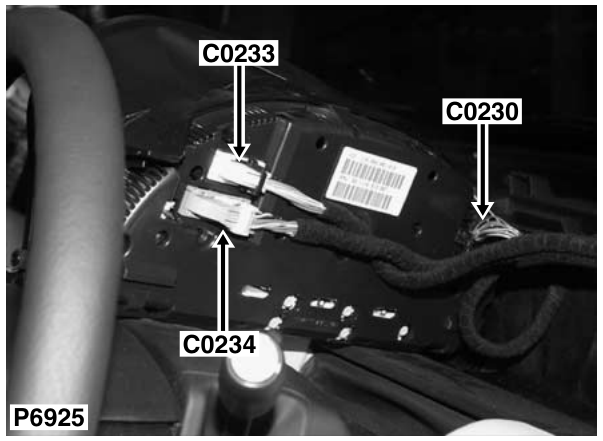

Location: Behind instrument pack
Colour: GREY Gender: Female
