Colour: YELLOW Gender: Female

Make

Land Rover

Model

Range Rover L322 Range Rover Electrical Library

Section

C0253 Main harness to seat harness › Colour: YELLOW Gender: Female

ConnectorsColour: YELLOW Gender: Female

Cav 5	Col PG	Cct 16
7	UW	16
9	YR	ALL
10	YN	ALL
13	RN	17
14	N	17
15	WRY	17
16	NB	17
17	NU	3
18	NR	3
19	NB	3
20	NW	3
21	B	3
22	BU	3
23	WG	18
24	N	18
25	GP	18

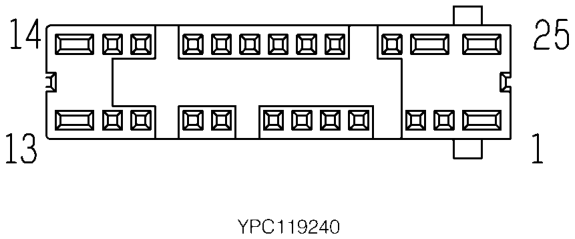

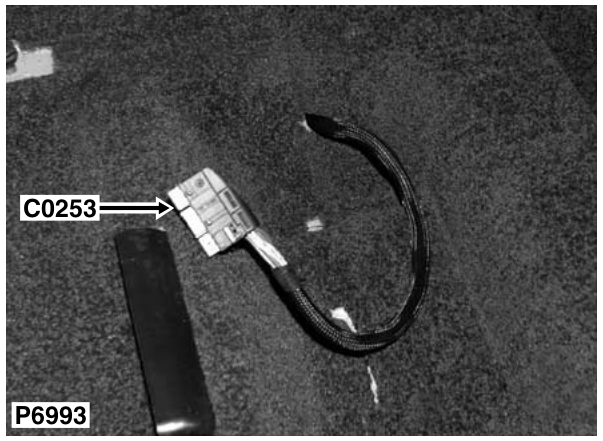

Description: Main harness to seat harness Location: Beneath RH seat

Colour: YELLOW Gender: Female

05 General
