Colour: YELLOW Gender: Female

Make

Land Rover

Model

Range Rover L322 Range Rover Electrical Library

Section

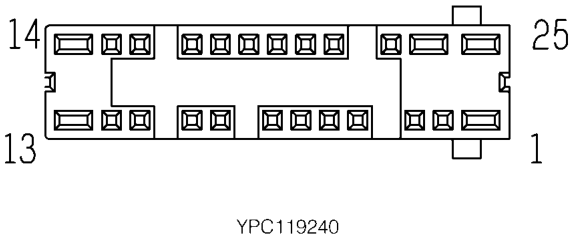

C0255 Main harness to seat harness › Colour: YELLOW Gender: Female

ConnectorsColour: YELLOW Gender: Female

Cav 5	Col PG	Cct 27
7	UP	27
9	UR	ALL
10	UN	ALL
13	RN	17
14	N	17
17	PG	ALL
18	WR	ALL
19	NB	ALL
23	WU	18
24	N	18
25	GY	18

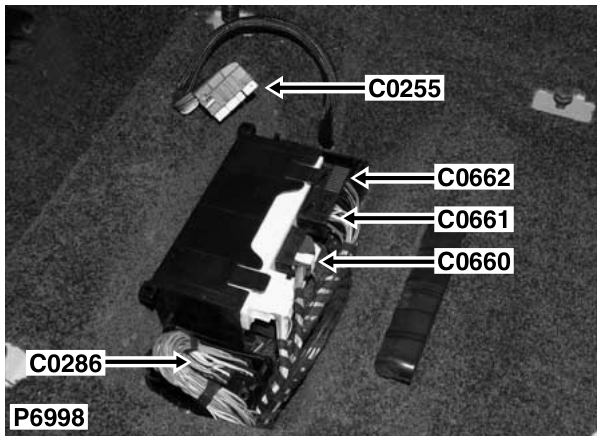

Description: Main harness to seat harness Location: Beneath LH seat

Colour: YELLOW Gender: Female
