Description: Switch-Wash/wipe-Windscreen
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C0278 Switch-Wash/wipe-Windscreen › Description: Switch-Wash/wipe-Windscreen
ConnectorsDescription: Switch-Wash/wipe-Windscreen
| Cav 1 | Col BW | Cct ALL |
| 3 | BW | ALL |
| 4 | NP | ALL |
| 5 | NW | ALL |
| 6 | NB | ALL |
| 7 | BU | ALL |
| 8 | BU | ALL |
| 9 | BG | ALL |
| 10 | NW | ALL |

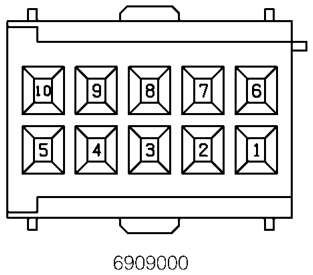

Description: Switch-Wash/wipe-Windscreen

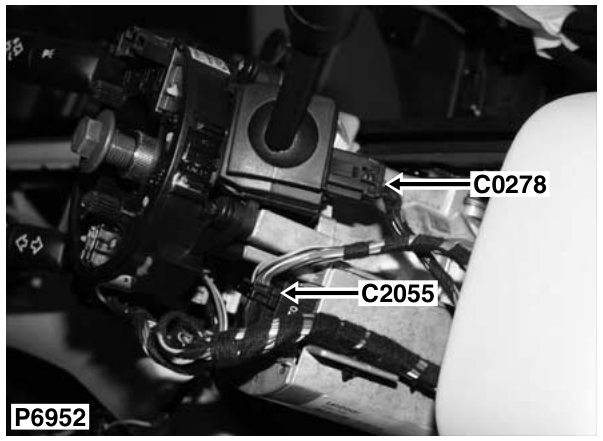

Location: Top of steering column
Colour: BLACK Gender: Female
