Description: Header
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C0286 Header › Description: Header
ConnectorsDescription: Header
| Cav 0 | Col UR | Cct 3 |
| 0 | RU | 12 |
| 0 | WRY | ALL |
| 0 | B | 27 |
| 0 | W | 30 |
| 0 | U | 30 |
| 1 | WRY | ALL |
| 1 | W | ALL |
| 0 | W | ALL |
| 1 | UR | ALL |
| 1 | U | ALL |
| 1 | SR | ALL |
| 0 | SR | ALL |
| 0 | RY | ALL |
| 1 | RY | ALL |
| 0 | RY | ALL |
| 1 | RY | ALL |
| 1 | B | ALL |
| 1 | RU | ALL |
| 0 | SR | ALL |
Description: Header

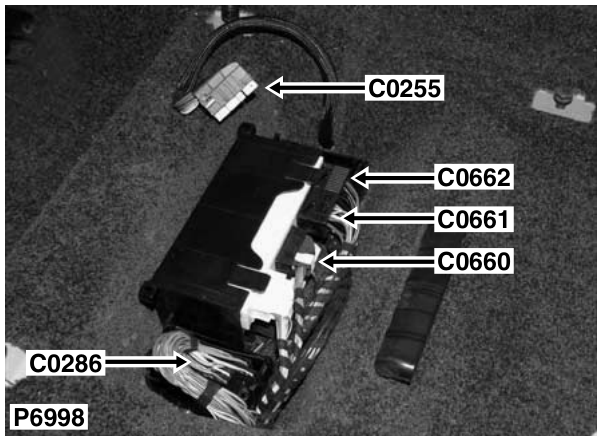

Location: Beneath front passenger's seat
Colour: Gender:
