Colour: BLUE Gender: Female
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C0583 Fuse box-Passenger compartment › Colour: BLUE Gender: Female

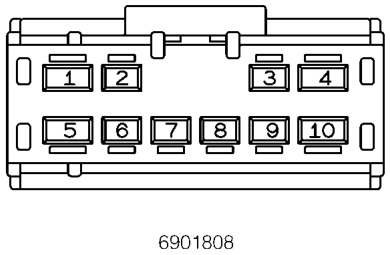

ConnectorsColour: BLUE Gender: Female
| Cav 1 | Col RW | Cct ALL |
| 2 | RY | 1 |
| 3 | RU | 2 |
| 4 | RB | ALL |
| 5 | R | ALL |
| 6 | RN | ALL |
| 8 | RY | ALL |
| 9 | RY | 17 |
| 10 | RW | ALL |

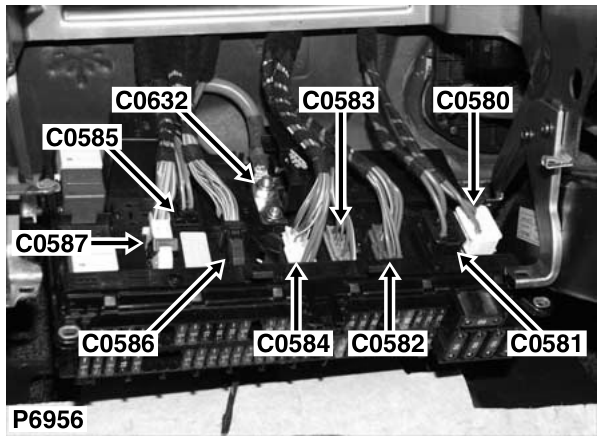

Description: Fuse box-Passenger compartment Location: Behind glovebox
Colour: BLUE Gender: Female
