Colour: NATURAL Gender: Female
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C0584 Fuse box-Passenger compartment › Colour: NATURAL Gender: Female
ConnectorsColour: NATURAL Gender: Female
| Cav 1 | Col RW | Cct ALL |
| 2 | RW | ALL |
| 4 | RG | ALL |
| 5 | RN | 17 |
| 6 | RW | ALL |
| 7 | RW | 2 |
| 8 | RY | ALL |
| 10 | RN | 17 |

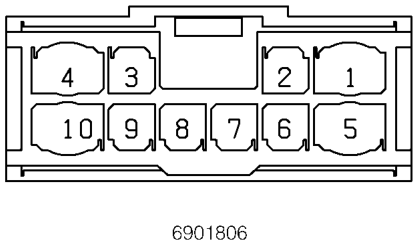

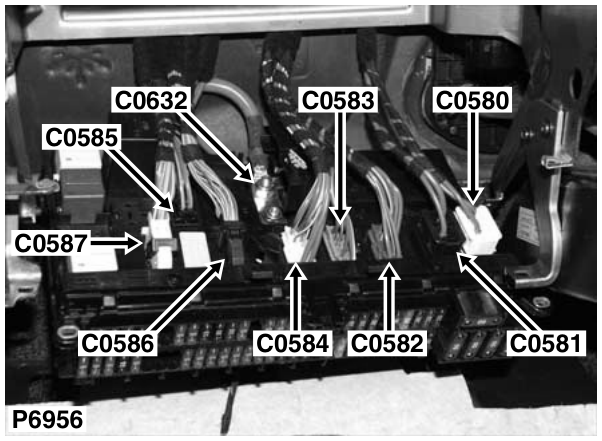

Description: Fuse box-Passenger compartment Location: Behind glovebox
Colour: NATURAL Gender: Female
