Colour: GREY Gender: Female

Make

Land Rover

Model

Range Rover L322 Range Rover Electrical Library

Section

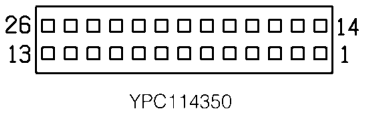

C0660 Body control unit (BCU) › Colour: GREY Gender: Female

ConnectorsColour: GREY Gender: Female

Cav 1	Col RS	Cct ALL
2	WN	ALL
3	NP	ALL
4	BW	ALL
5	BU	ALL
6	NW	ALL
7	NS	ALL
12	WRY	ALL
13	WY	ALL
14	NB	ALL
15	SN	ALL
17	SU	ALL
18	SY	ALL
19	SW	ALL
20	NG	ALL
22	YB	ALL
23	PW	ALL
24	YR	ALL
25	UR	ALL
26	SB	ALL

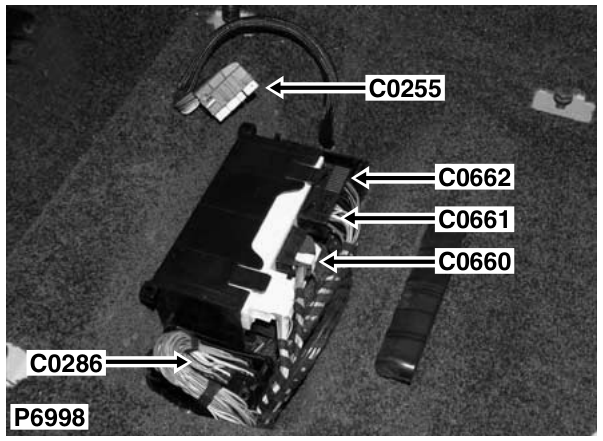

Description: Body control unit (BCU) Location: Beneath front passenger's seat

Colour: GREY Gender: Female
