Colour: GREY Gender: Female

Make

Land Rover

Model

Range Rover L322 Range Rover Electrical Library

Section

C0661 Body control unit (BCU) › Colour: GREY Gender: Female

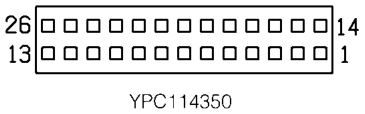

ConnectorsColour: GREY Gender: Female

Cav 2	Col PG	Cct ALL
4	UY	23
5	BY	ALL
8	BU	ALL
10	SY	ALL
11	SN	ALL
12	NY	ALL
13	SU	ALL
15	NU	ALL
16	NW	ALL
17	UB	21
19	SBY	ALL
20	BS	ALL
22	NY	ALL
23	NR	ALL
24	NR	ALL
25	BG	ALL
26	NB	ALL

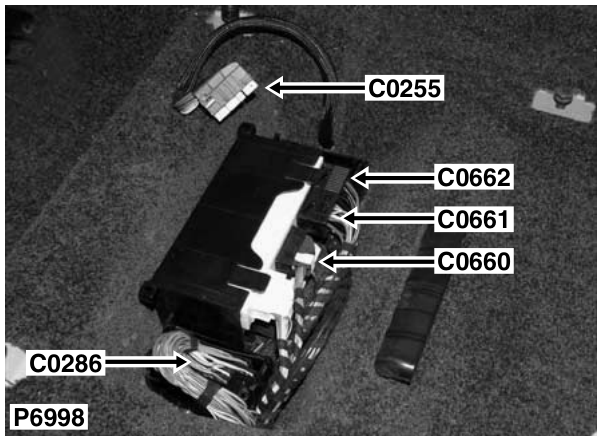

Description: Body control unit (BCU) Location: Beneath front passenger's seat

Colour: GREY Gender: Female

05 General
