Colour: BLACK Gender: Female

Make

Land Rover

Model

Range Rover L322 Range Rover Electrical Library

Section

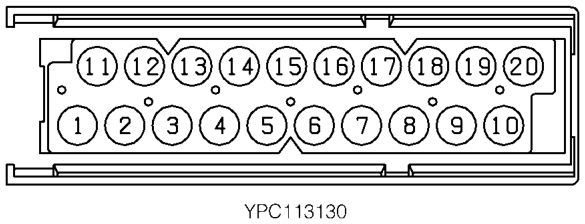

C0662 Body control unit (BCU) › Colour: BLACK Gender: Female

ConnectorsColour: BLACK Gender: Female

Cav 1	Col N	Cct ALL
2	US	ALL
3	YN	ALL
4	RW	ALL
5	UP	ALL
6	B	ALL
9	BW	ALL
10	RP	ALL
11	BR	ALL
12	BG	ALL
13	W	ALL
14	U	ALL
15	BN	ALL
17	BU	ALL
18	B	ALL
19	RY	ALL
20	RU	ALL

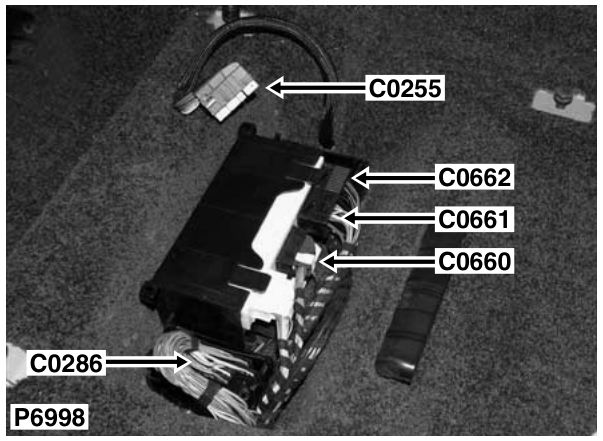

Description: Body control unit (BCU) Location: Beneath front passenger's seat

Colour: BLACK Gender: Female

05 General
