Description: ECU-PDC
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C0957 ECU-pdc › Description: ECU-PDC
ConnectorsDescription: ECU-PDC
| Cav 1 | Col GN | Cct 6 |
| 2 | UR | 6 |
| 4 | WSY | 6 |
| 6 | NB | 6 |
| 7 | NWY | 6 |
| 8 | US | 6 |
| 9 | US | 6 |
| 10 | NUY | 6 |
Description: ECU-PDC

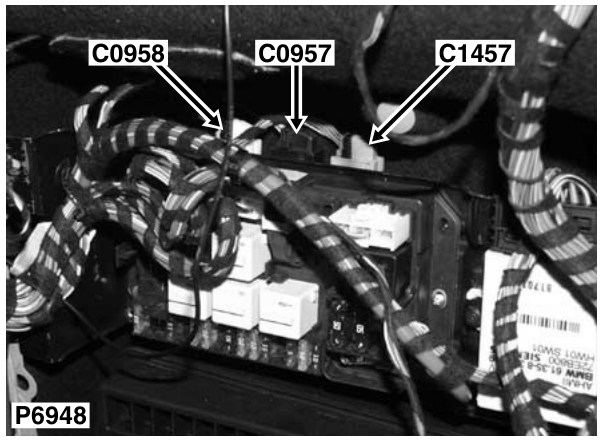

Location: Luggage compartment - RH side
Colour: BLACK Gender: Female
