Description: ECU-PDC
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C0958 ECU-pdc › Description: ECU-PDC
ConnectorsDescription: ECU-PDC
| Cav 1 | Col NB | Cct 6 |
| 2 | NY | 6 |
| 3 | NW | 6 |
| 4 | GS | 6 |
| 5 | GN | 6 |
| 6 | GP | 6 |
| 7 | NU | 6 |
| 8 | YB | 6 |
| 9 | YG | 6 |
| 10 | YN | 6 |
| 11 | YS | 6 |
| 12 | GB | 6 |
Description: ECU-PDC

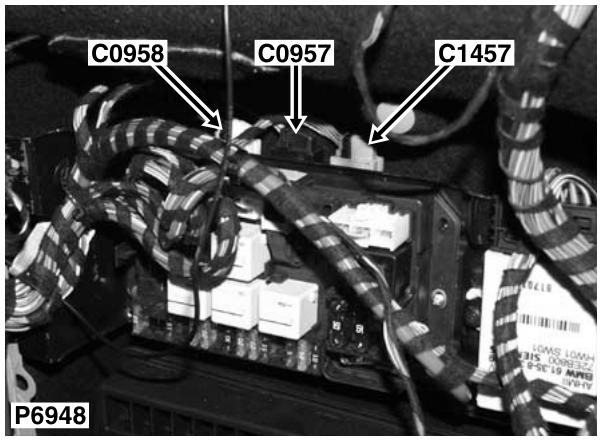

Location: Luggage compartment - RH side
Colour: Gender:
