Description: Sensor-Tilt
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C0960 Sensor-Tilt › Description: Sensor-Tilt
ConnectorsDescription: Sensor-Tilt
| Cav 1 | Col BU | Cct ALL |
| 2 | BW | ALL |
| 3 | RB | ALL |
| 4 | BS | ALL |
| 5 | BG | ALL |
Description: Sensor-Tilt

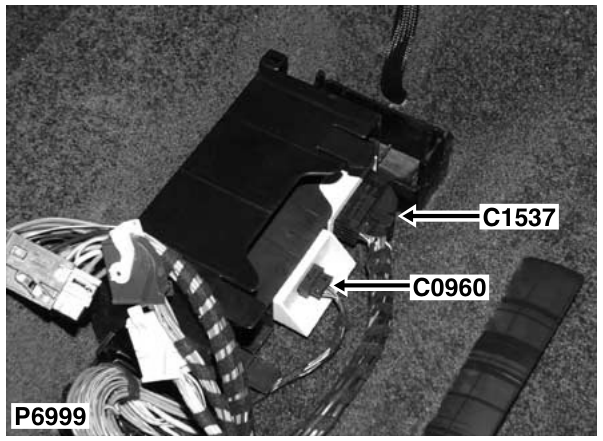

Location: Beneath front passenger's seat
Colour: Gender:
