Description: Microphone-Telephone
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C1303 Microphone-Telephone › Description: Microphone-Telephone
ConnectorsDescription: Microphone-Telephone
| Cav 1 | Col B | Cct ALL |
| 2 | Y | ALL |
| 3 | SCR | ALL |
Description: Microphone-Telephone

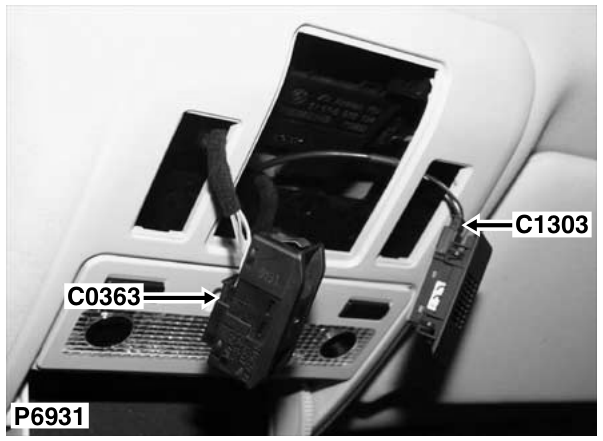

Location: Front of headlining in the centre
Colour: BLACK Gender: Female
