Colour: GREY Gender: Female

Make

Land Rover

Model

Range Rover L322 Range Rover Electrical Library

Section

C1319 ECU-Transfer box › Colour: GREY Gender: Female

ConnectorsColour: GREY Gender: Female

Cav 7	Col PU	Cct ALL
8	WG	ALL
13	YN	ALL
15	GP	ALL
17	WR	ALL
18	WB	ALL
19	WP	ALL
26	YB	ALL

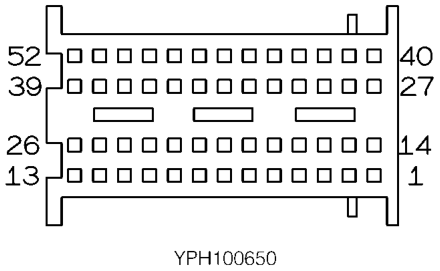

Description: ECU-Transfer box Location: Rear LH side of engine compartment

Colour: GREY Gender: Female

05 General
