Colour: BLACK Gender: Female

Make

Land Rover

Model

Range Rover L322 Range Rover Electrical Library

Section

C1537 ECU-Tyre deflation › Colour: BLACK Gender: Female

ConnectorsColour: BLACK Gender: Female

Cav 1	Col WRY	Cct 23
3	UR	23
5	W	23
6	SCR	23
7	W	23
8	W	23
9	SCR	23
10	W	23
14	UN	23
15	RNY	23
16	NB	23
17	UY	23
21	G	23
22	SCR	23
23	U	23
24	R	23
25	SCR	23
26	Y	23
31	GN	23

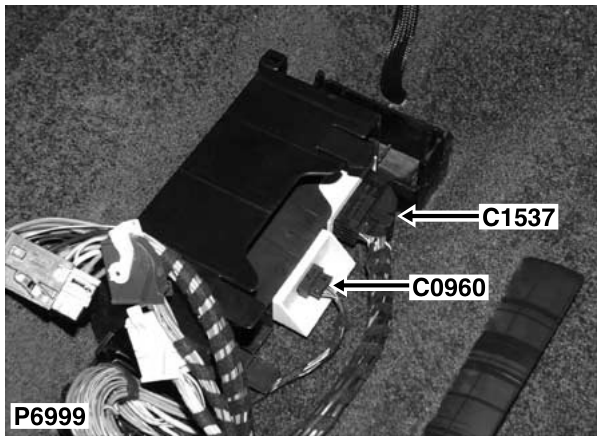

Description: ECU-Tyre deflation Location: Beneath front passenger's seat

Colour: BLACK Gender: Female

05 General
