Colour: GREY Gender: Female

Make

Land Rover

Model

Range Rover L322 Range Rover Electrical Library

Section

C1543 ECU-Headlamp levelling › Colour: GREY Gender: Female

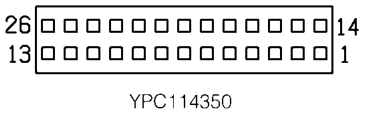

ConnectorsColour: GREY Gender: Female

Cav 1	Col YR	Cct 22
2	YN	22
3	UR	22
4	UN	22
5	WN	22
7	SN	22
8	UN	22
9	UB	22
10	YB	22
11	YN	22
13	YR	22
14	WRY	22
16	WS	22
18	WB	22
20	SW	22
21	UR	22
22	SB	22
24	YW	22
26	NB	22

Description: ECU-Headlamp levelling Location: Passenger's footwell

Colour: GREY Gender: Female

05 General
