Description: Sensor-Pressure-Air
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C1611 Sensor-Pressure-Air › Description: Sensor-Pressure-Air
ConnectorsDescription: Sensor-Pressure-Air
| Cav 1 | Col W | Cct ALL |
| 2 | U | ALL |
| 3 | Y | ALL |
Description: Sensor-Pressure-Air

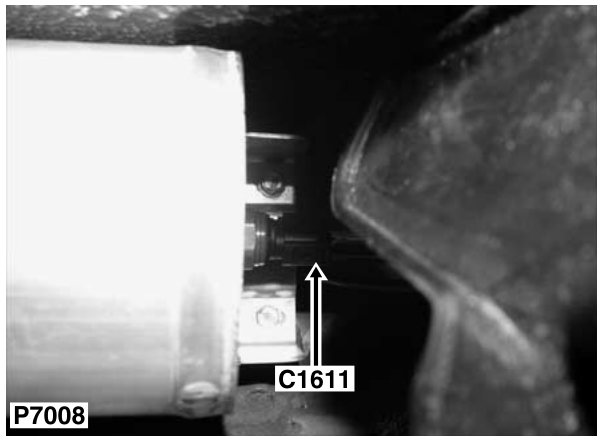

Location: Beneath vehicle - RH side
Colour: BLACK Gender: Female
