Colour: GREY

Make

Land Rover

Model

Range Rover L322 Range Rover Electrical Library

Section

C1629 Module-HEVAC control › Colour: GREY

ConnectorsColour: GREY

Cav 1	Col GY	Cct ALL
2	YN	5
3	WRY	ALL
4	RY	ALL
5	YN	ALL
6	YP	5
7	UN	ALL
8	SY	ALL
9	UG	ALL
10	BS	ALL
12	N	5
13	Y	5
14	UN	9
15	WG	18
16	WU	18
17	BG	ALL
18	YR	5
19	YG	5
20	NB	ALL
21	GY	ALL
22	SB	8
23	SR	ALL
24	YB	5
25	N	5
26	U	5

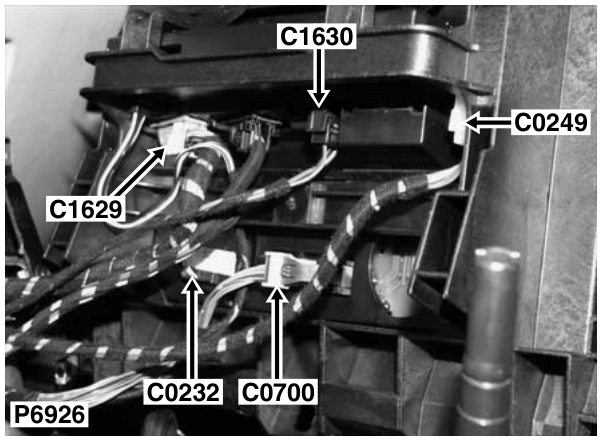

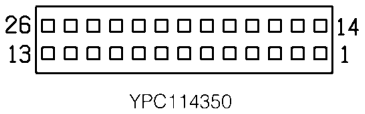

Description: Module-HEVAC control Location: Behind centre console

Colour: GREY

Gender: Female

05 General
