Colour: NATURAL Gender: Female
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover Electrical Library
- Section
- C2021 Fuse box-Rear › Colour: NATURAL Gender: Female
ConnectorsColour: NATURAL Gender: Female
| Cav 2 | Col GU | Cct 5 |
| 5 | B | ALL |
| 6 | GW | 19 |
| 7 | GN | 19 |
| 9 | RW | ALL |
| 10 | N | ALL |

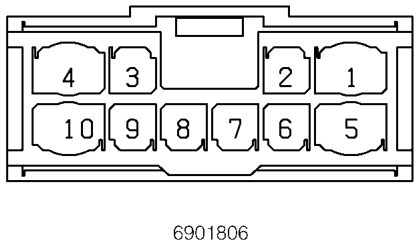

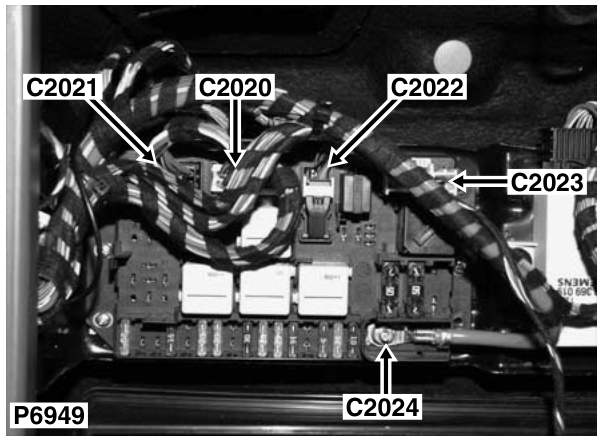

Description: Fuse box-Rear Location: Luggage compartment - RH side
Colour: NATURAL Gender: Female
