Colour: GREY Gender: Female

Make

Land Rover

Model

Range Rover L322 Range Rover Electrical Library

Section

C2022 Fuse box-Rear › Colour: GREY Gender: Female

ConnectorsColour: GREY Gender: Female

Cav 1	Col B	Cct ALL
9	GY	ALL
10	GY	ALL
14	NY	ALL
15	UY	ALL
16	UW	ALL
17	RS	ALL
21	RB	11
22	BP	ALL
23	RW	ALL
26	UN	ALL

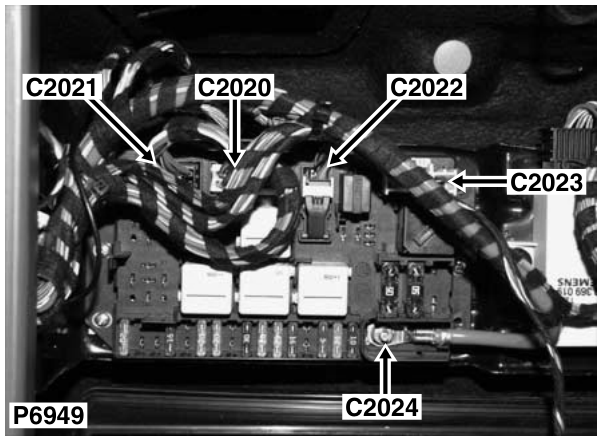

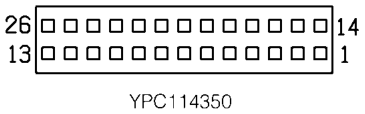

Description: Fuse box-Rear Location: Luggage compartment - RH side

Colour: GREY Gender: Female

05 General
