LT230 Transfer Box: Main Casing Components (Page 20)
TRANSFER BOX
DESCRIPTION AND OPERATION
7

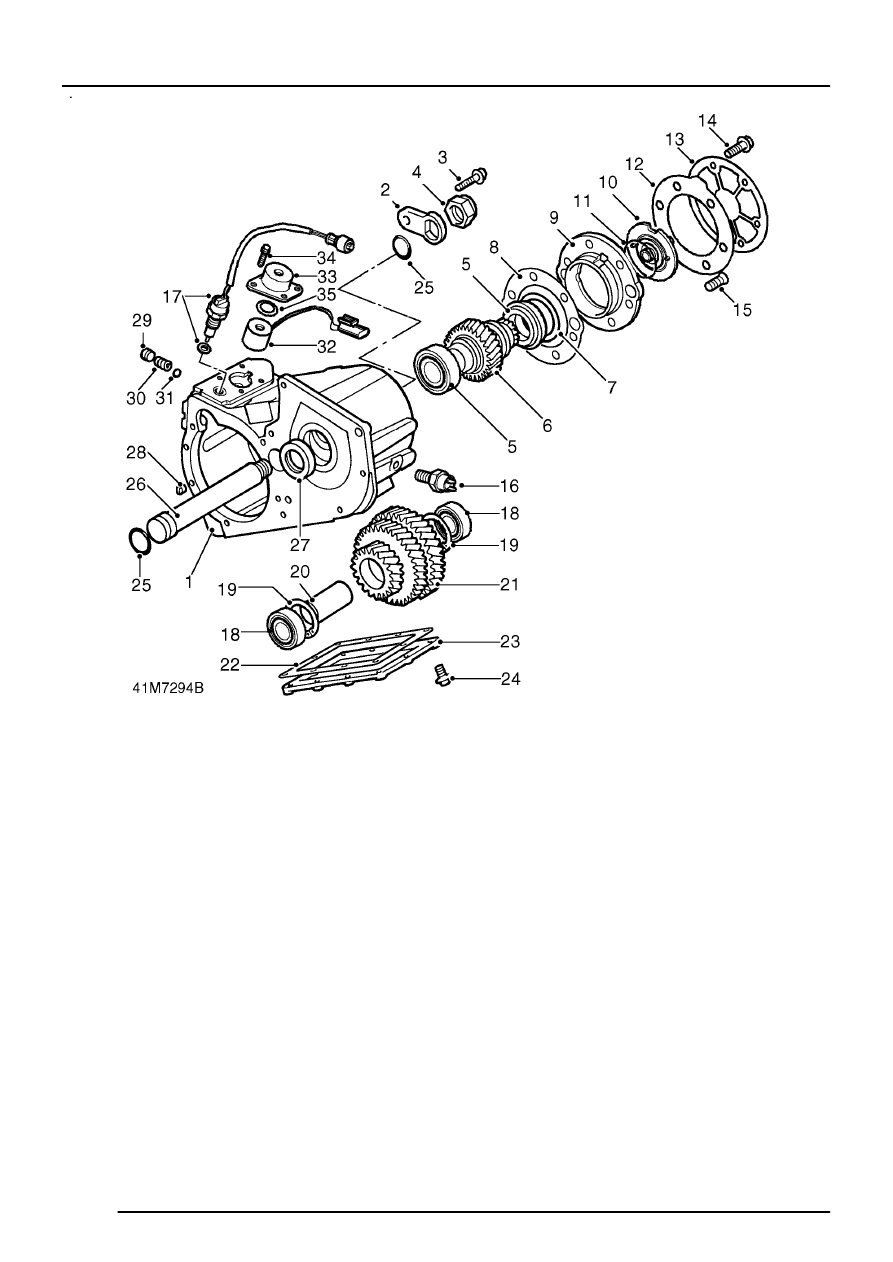

MAIN CASING COMPONENTS
1. Main casing
2. Retaining plate
3. Bolt - retaining plate
4. Stake nut - intermediate shaft
5. Bearings and outer tracks - mainshaft input
gear
6. Mainshaft input gear *
7. Selective shim
8. Gasket **
9. Mainshaft input gear bearing housing
10. Oil feed plate ***
11. ’O’ ring ***
12. Gasket **
13. Cover plate/power take-off cover *
14. Bolt - cover plate
15. Countersunk screw - bearing housing
16. Oil temperature switch ***
17. Neutral warning lamp switch and washer ***
18. Bearings and outer tracks - intermediate gears
19. Circlips
20. Collapsible spacer ****
21. Intermediate gears
22. Gasket **
23. Bottom cover plate
24. Bolt - bottom cover plate
25. ’O’ rings - intermediate shaft
26. Intermediate shaft
27. Mainshaft oil seal
28. Locating dowel
29. Detent plug - high/low selector
30. Detent spring - high/low selector
31. Detent ball - high/low selector
32. Interlock solenoid ***
33. Cover - interlock solenoid ***
34. Bolt - interlock solenoid cover ***
35. Belleville washer ***
* Defender mainshaft input gear and Discovery
power take-off cover plate illustrated
** Up to serial no. 288709E
*** If fitted
**** Selective length - non-collapsible spacer
fitted on later transfer boxes
