DieselDiesel – circuit diagram

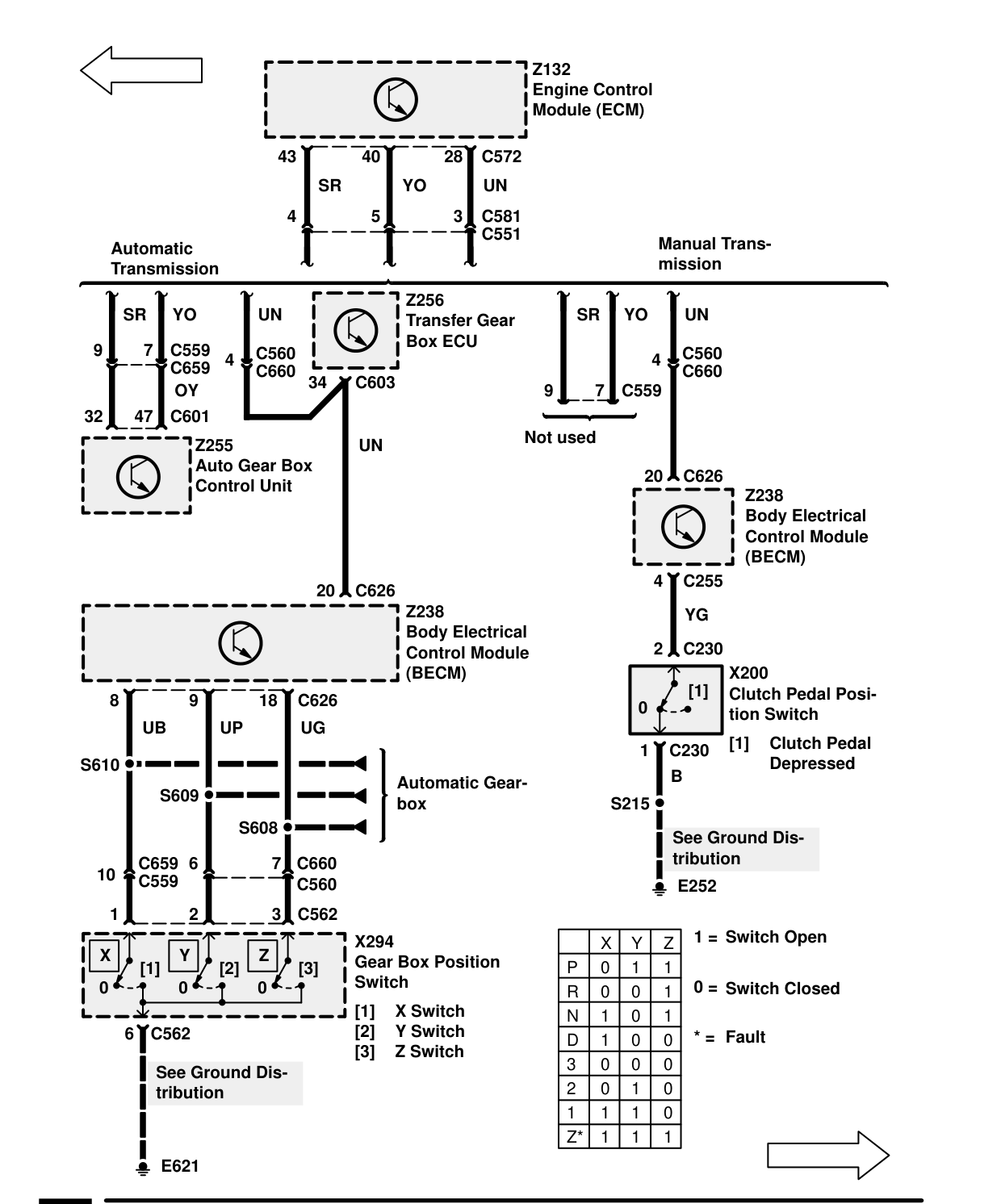

DIESEL – CIRCUIT DIAGRAM
Components on this page
- X200 Clutch Pedal Position Switch
- X294 Gear Box Position Switch
- Z132 Engine Control Module (ECM)
- Z238 Body Electrical Control Module (BECM)
- Z255 Auto Gear Box Control Unit
- Z256 Transfer Gear Box ECU
